Simulations for Geostationary Earth Orbit (GEO)

General settings:
  • Wavelength range: 400-500nm (0.2nm resolution)
  • Layer AMF calculated at 460nm
  • Molecular tau file provided by Huan: moltau_400_500_u76_EuropeNO2_v2.nc
  • VZA: 58.3°, VAA: 196.3°
  • clouds from ICON simulation (wc mie, ic baum_v36 ghm)

Results for case 0

Settings: albedo 0.05 sza 20 phi0 270

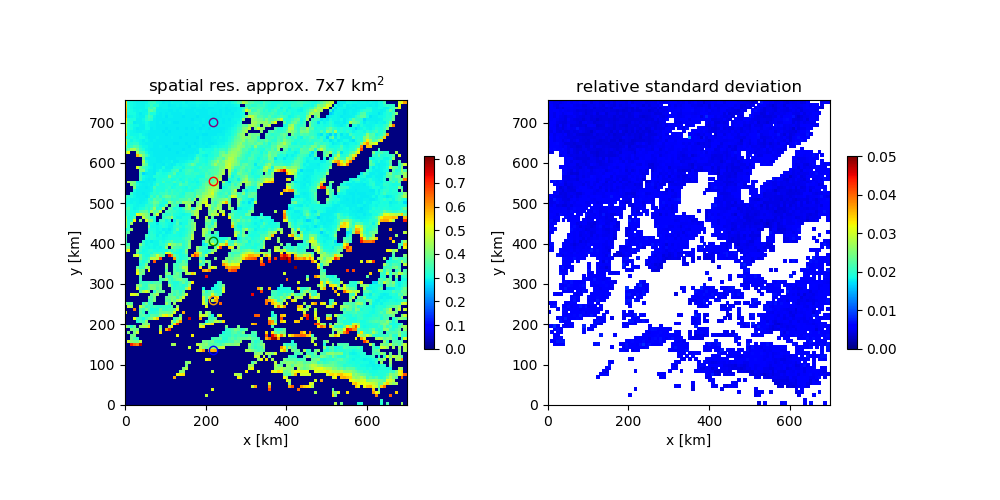

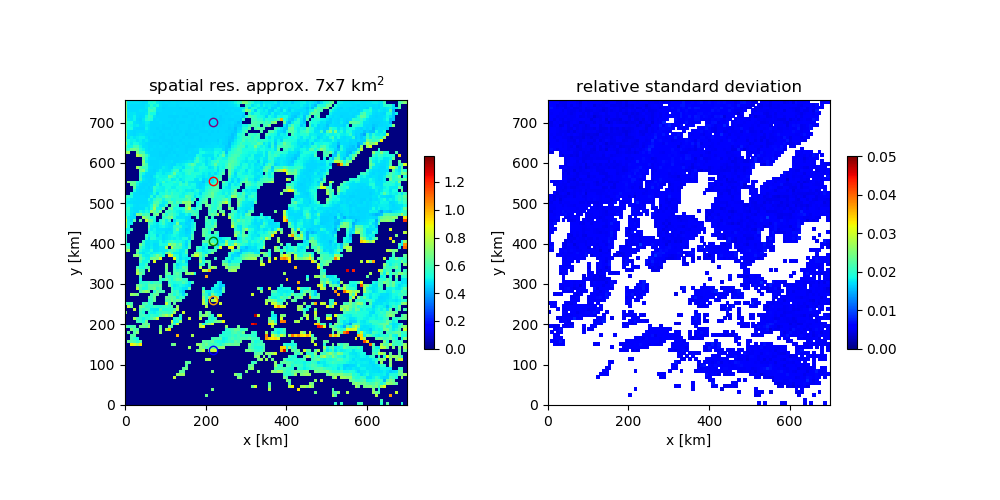

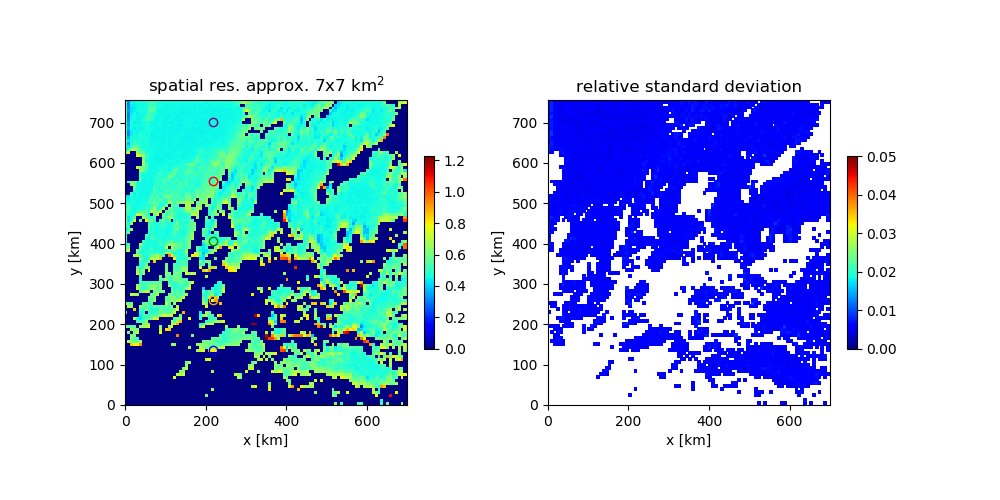

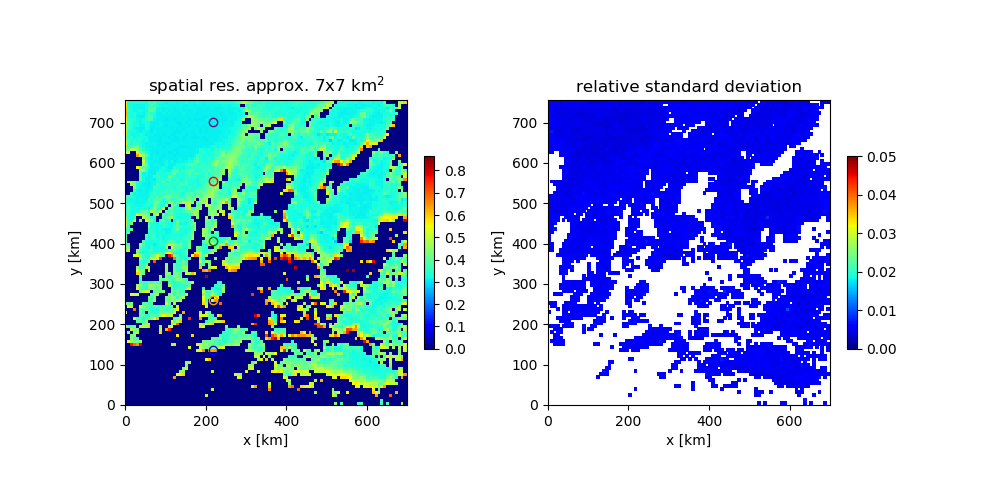

Simulated reflectance.

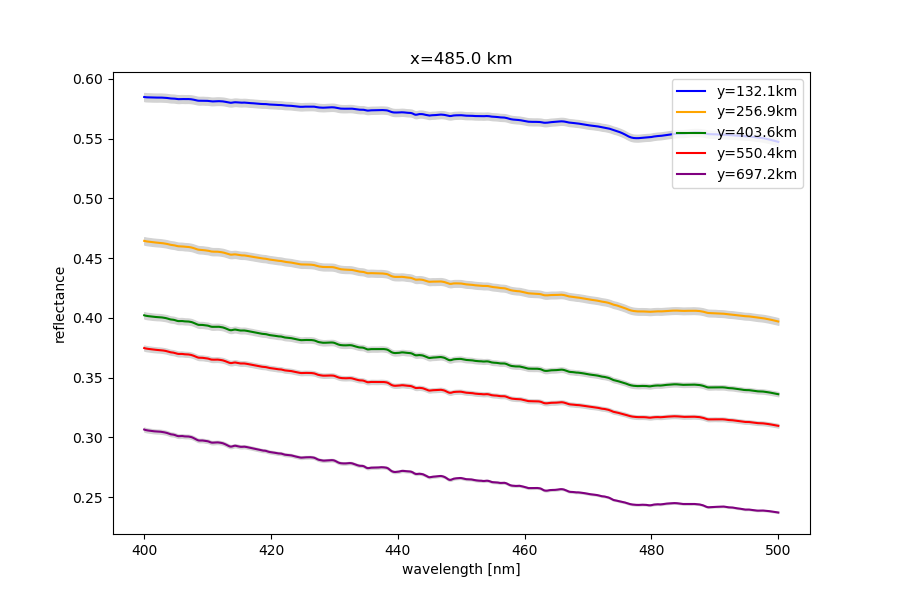

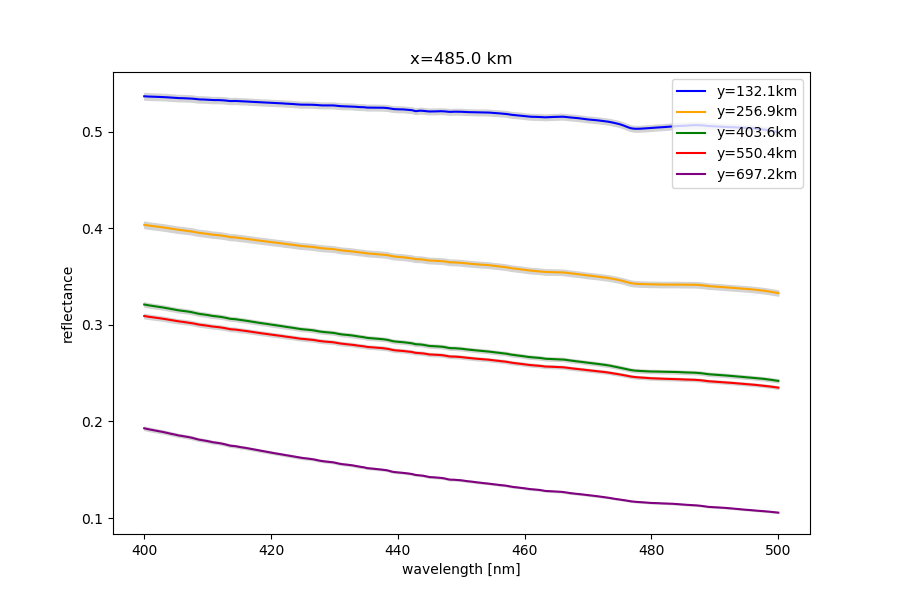

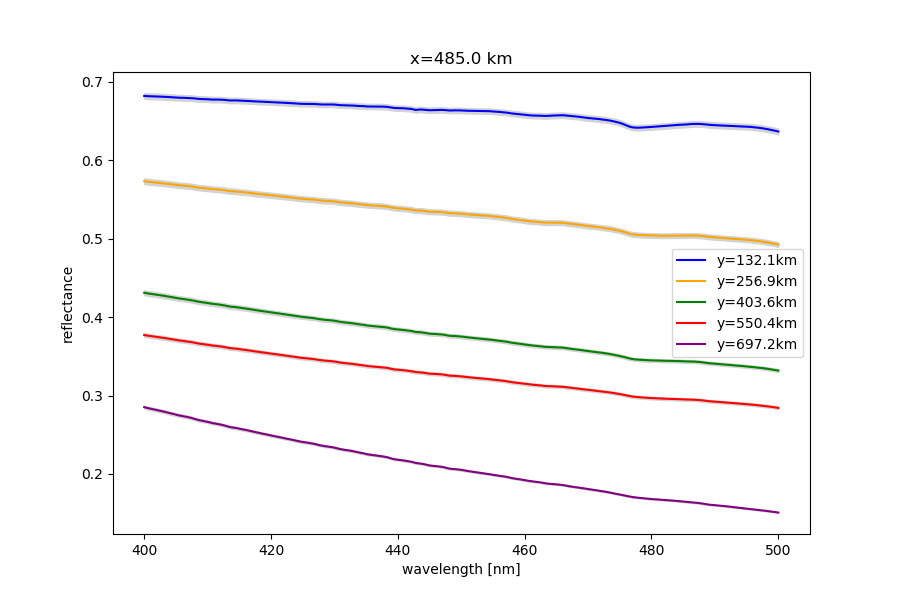

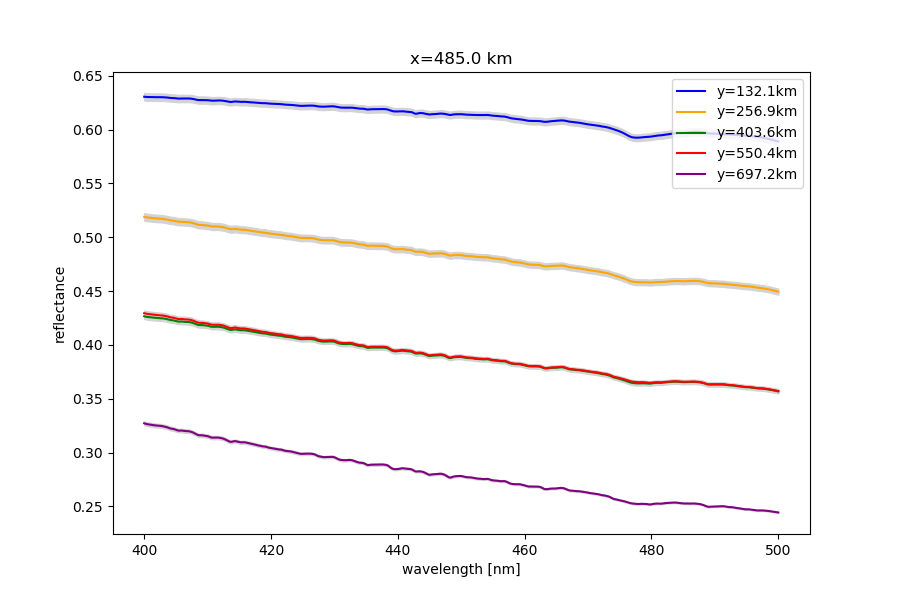

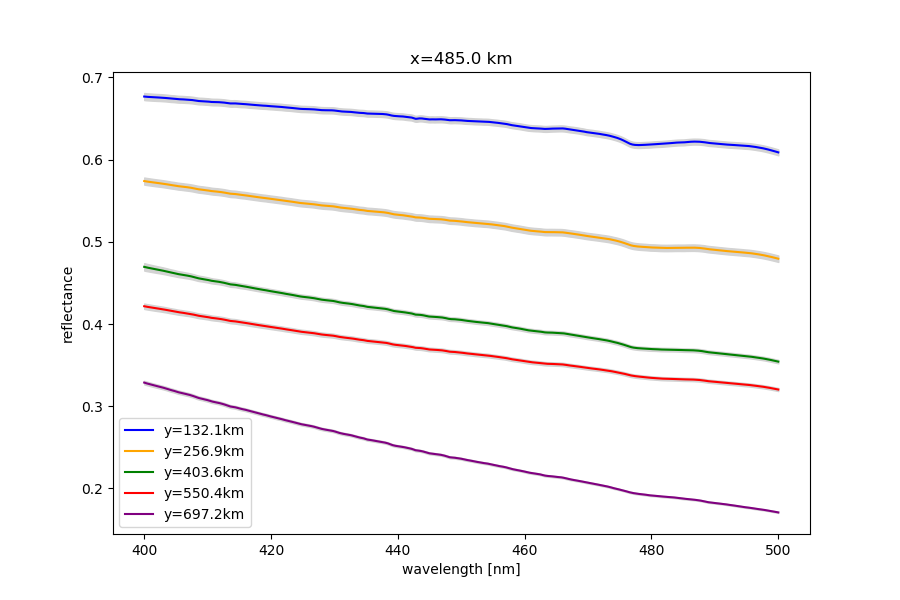

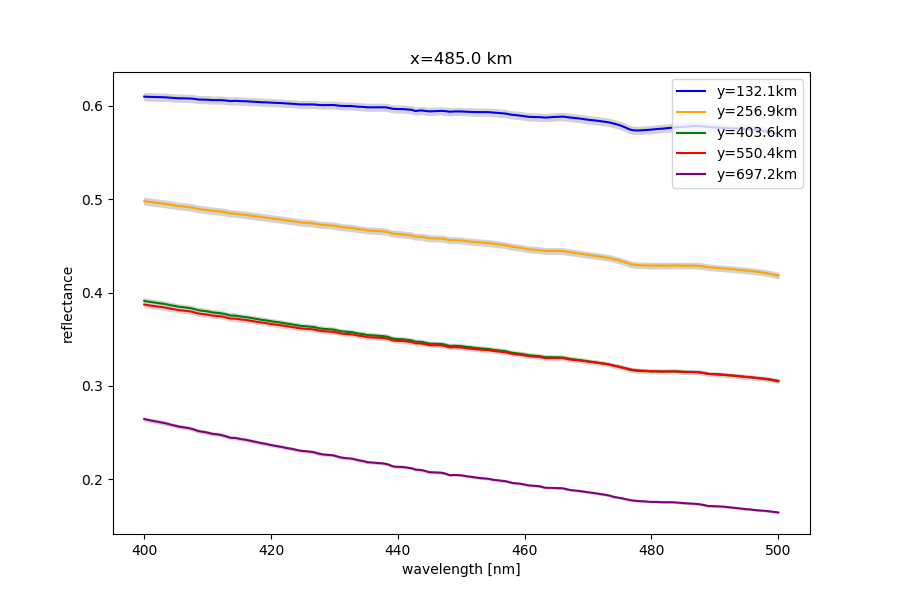

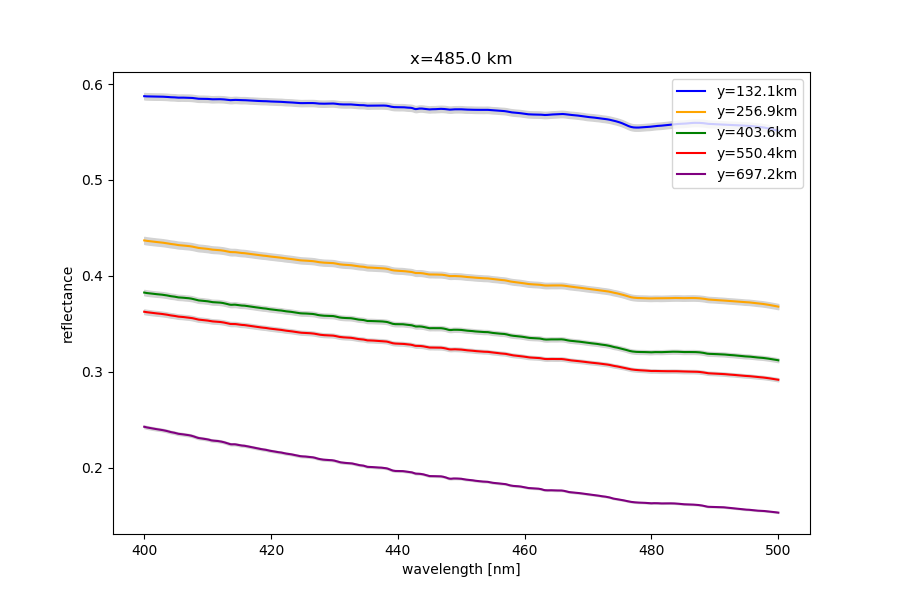

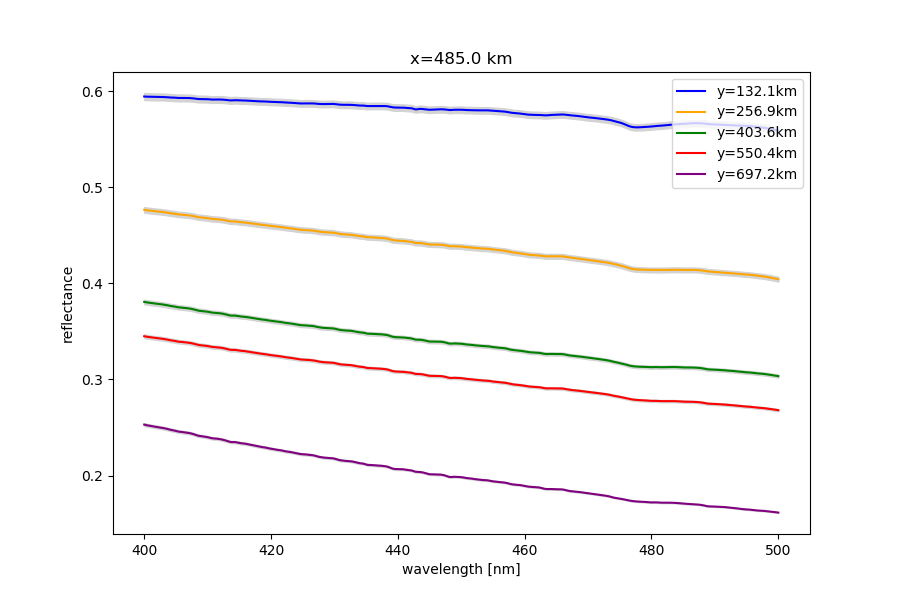

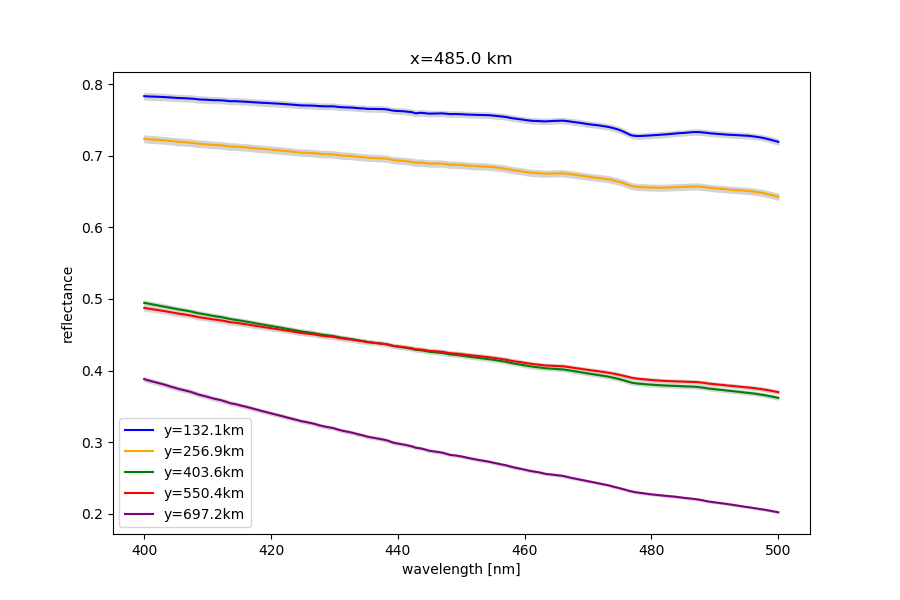

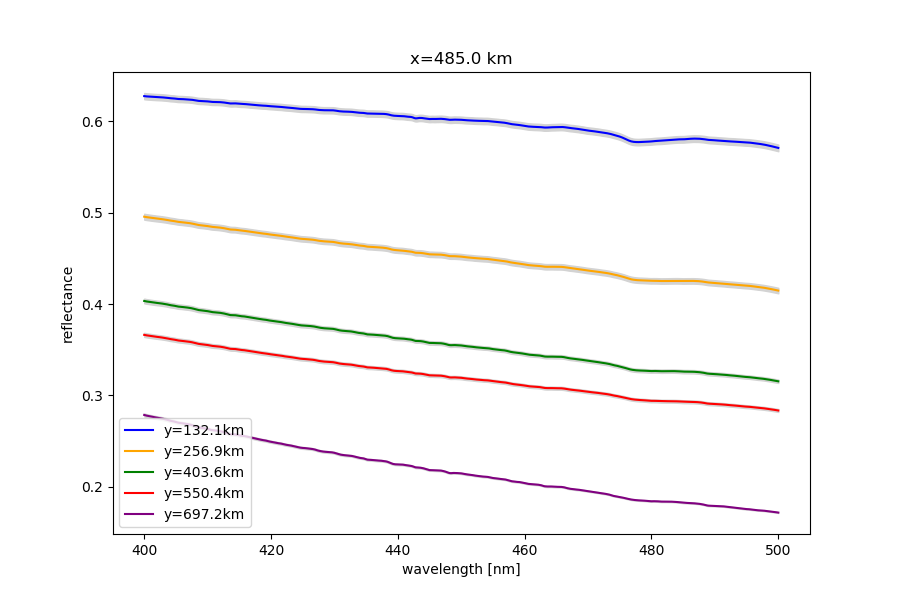

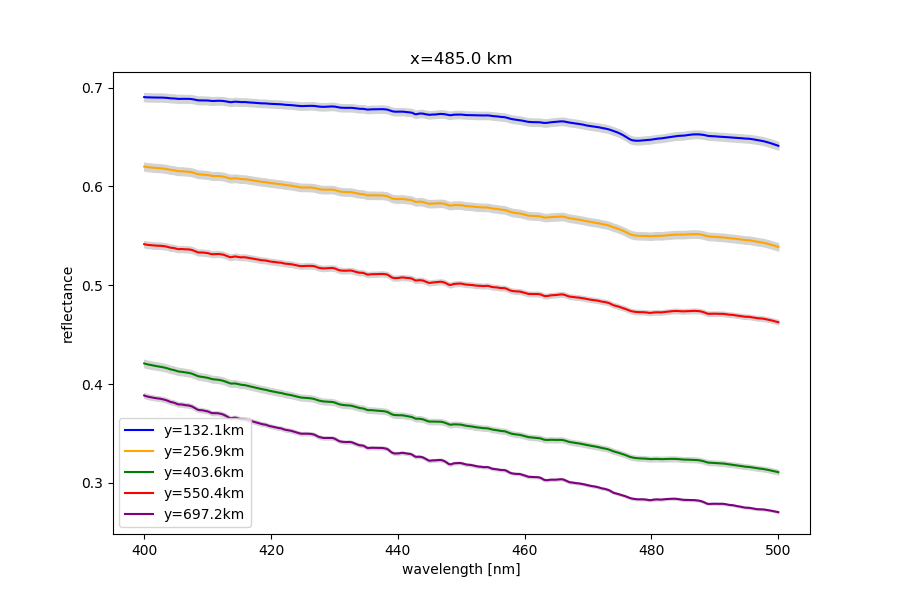

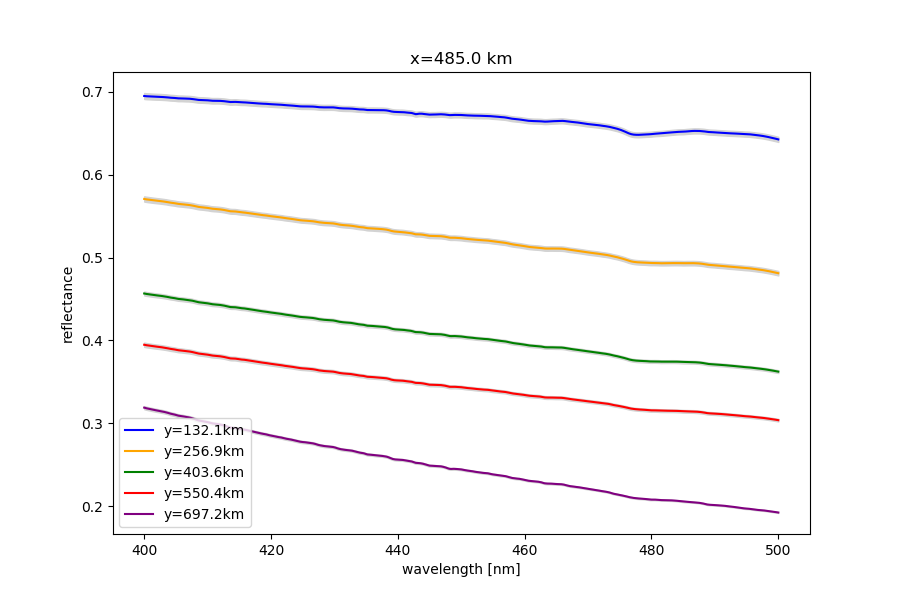

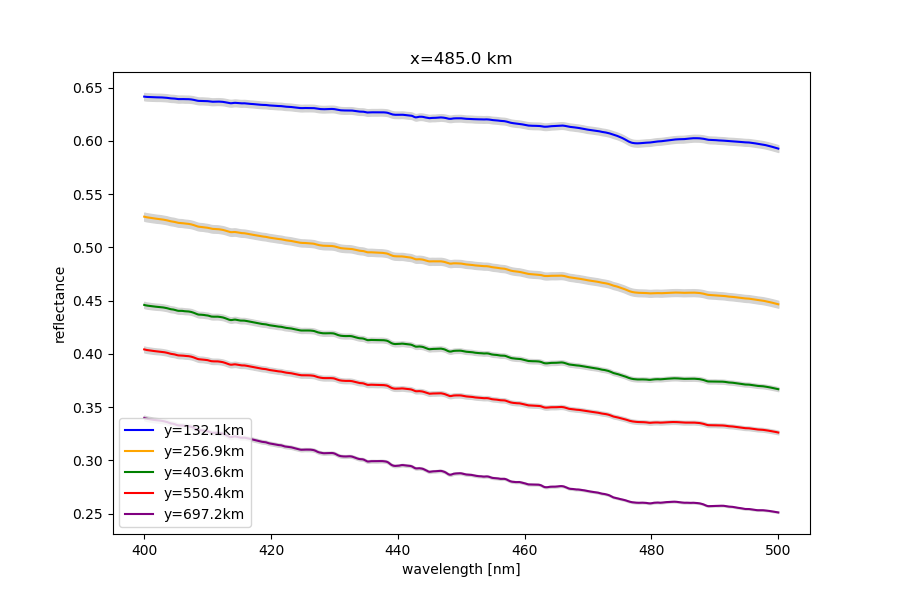

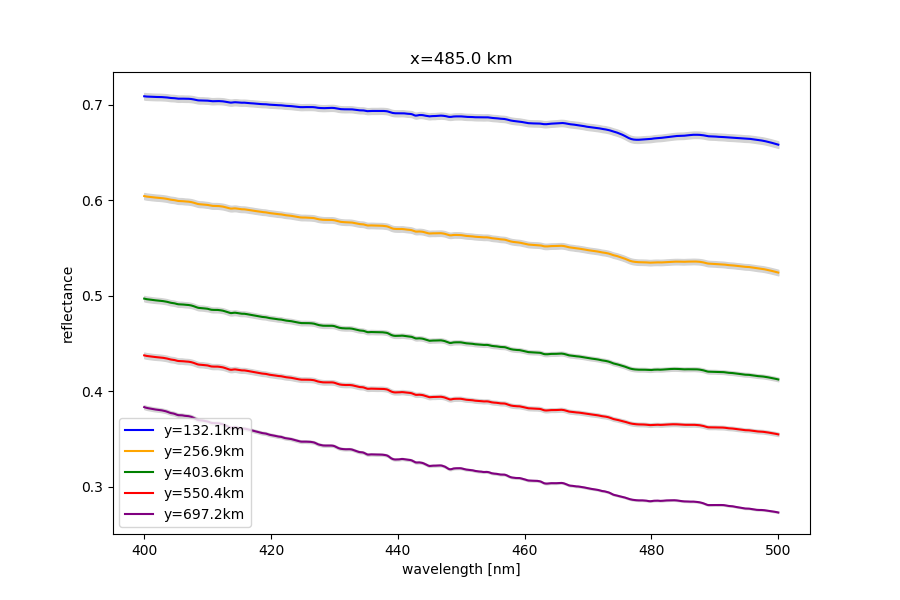

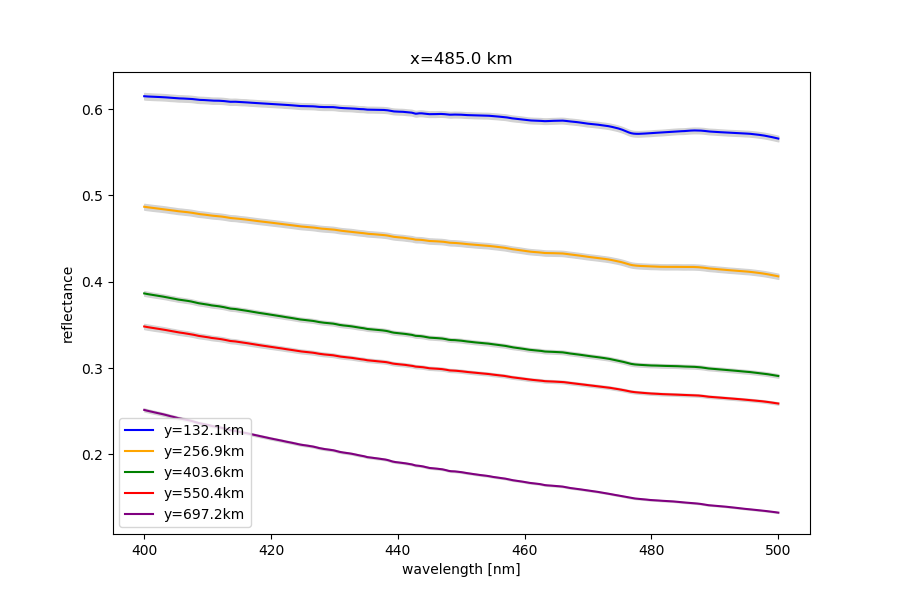

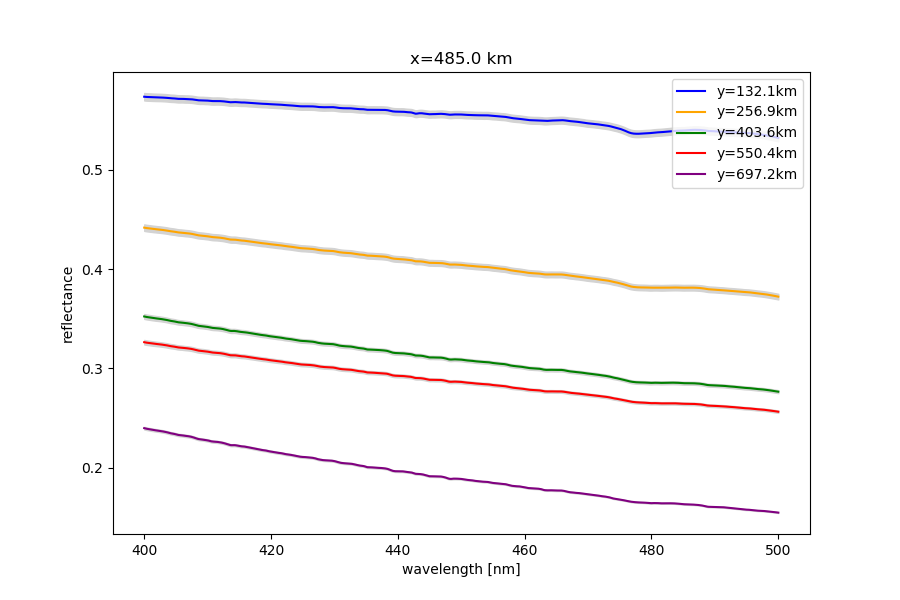

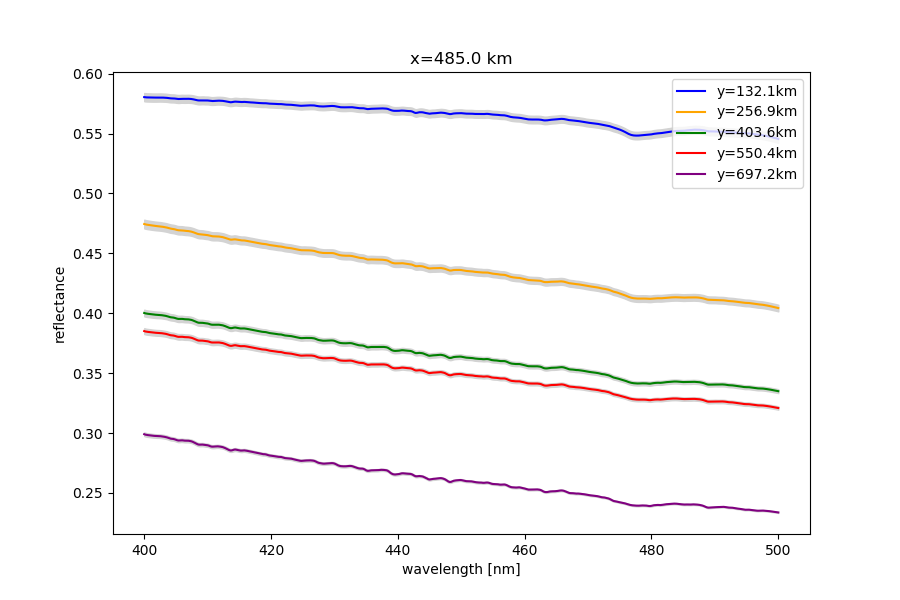

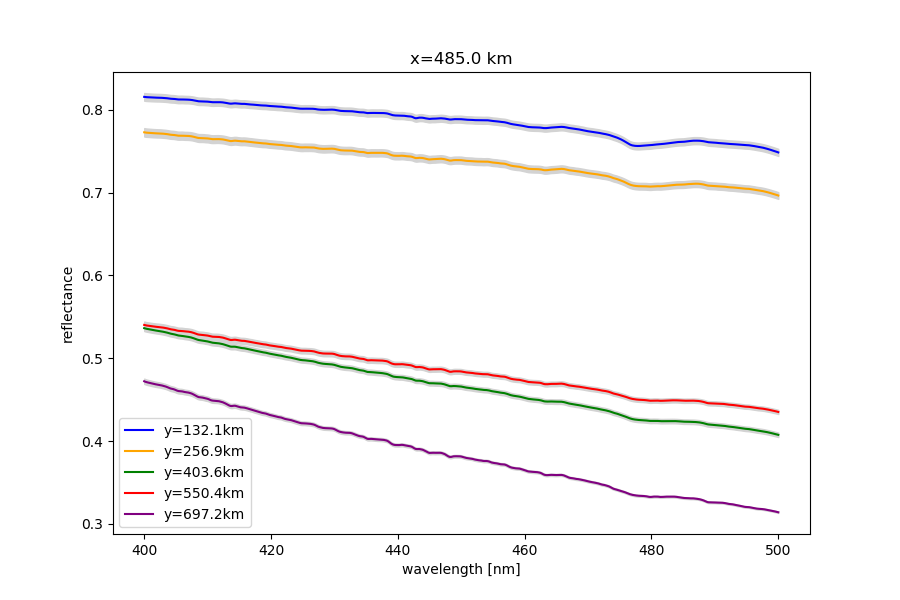

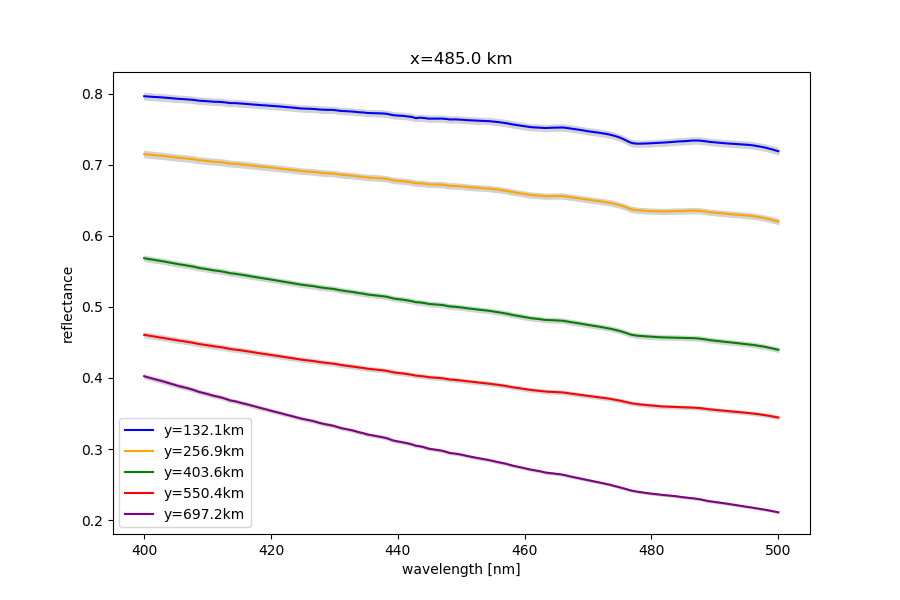

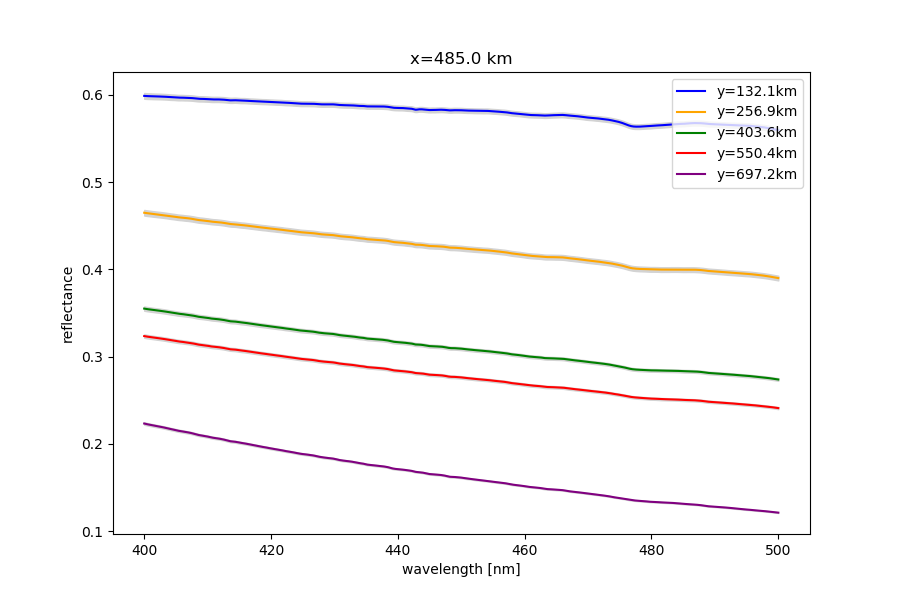

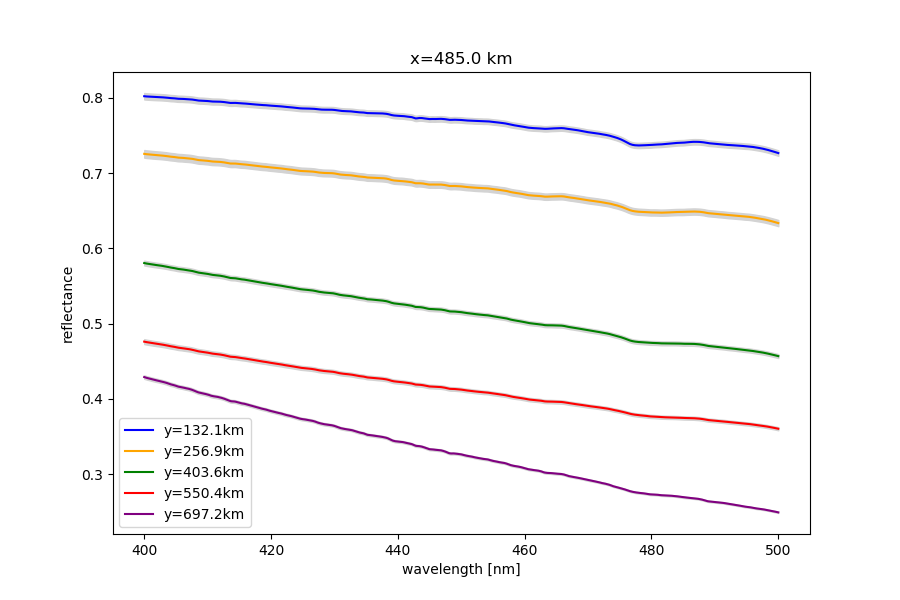

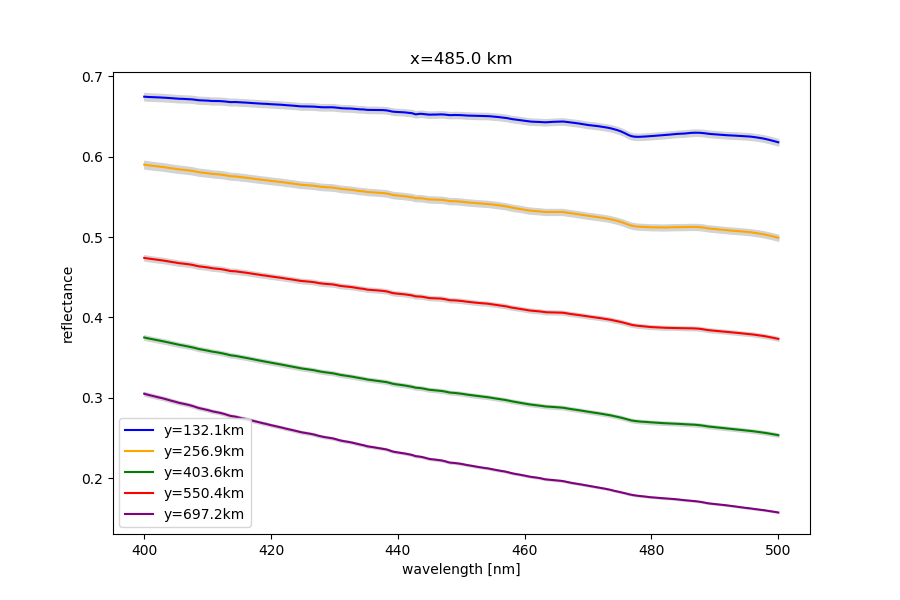

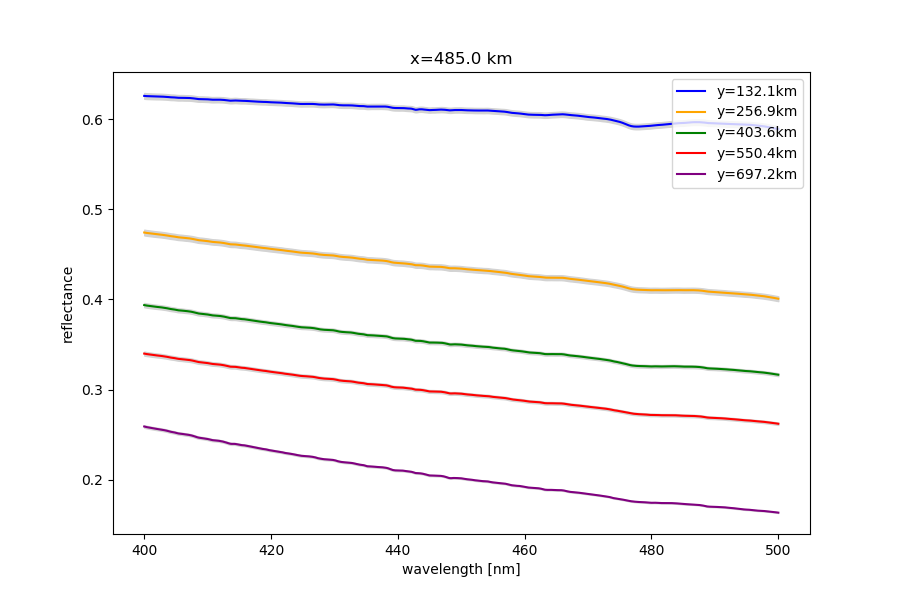

Reflectance spectra.

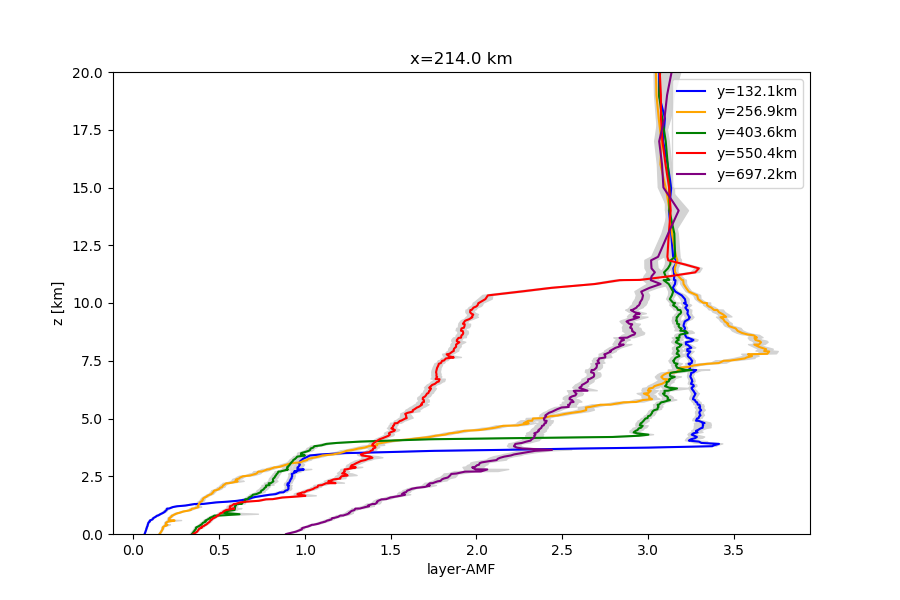

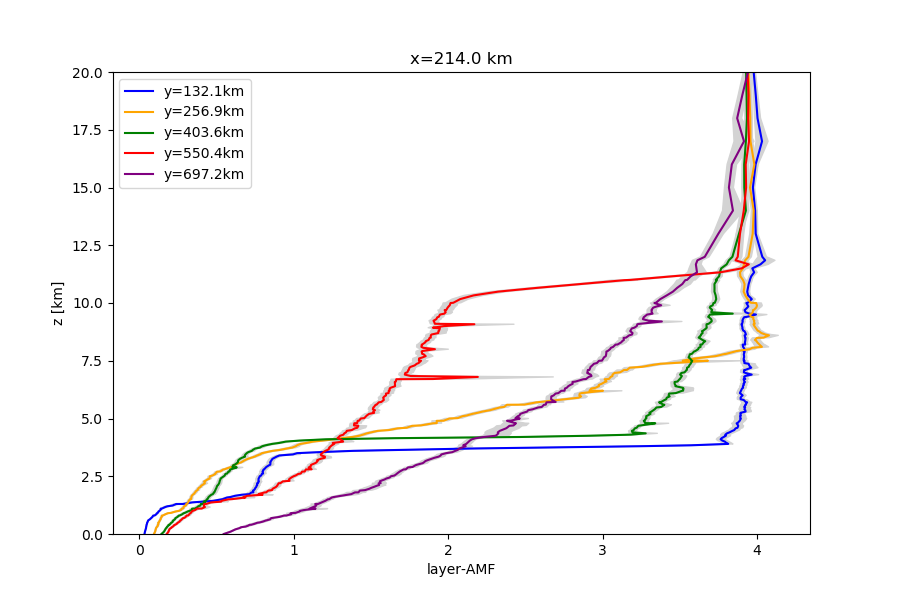

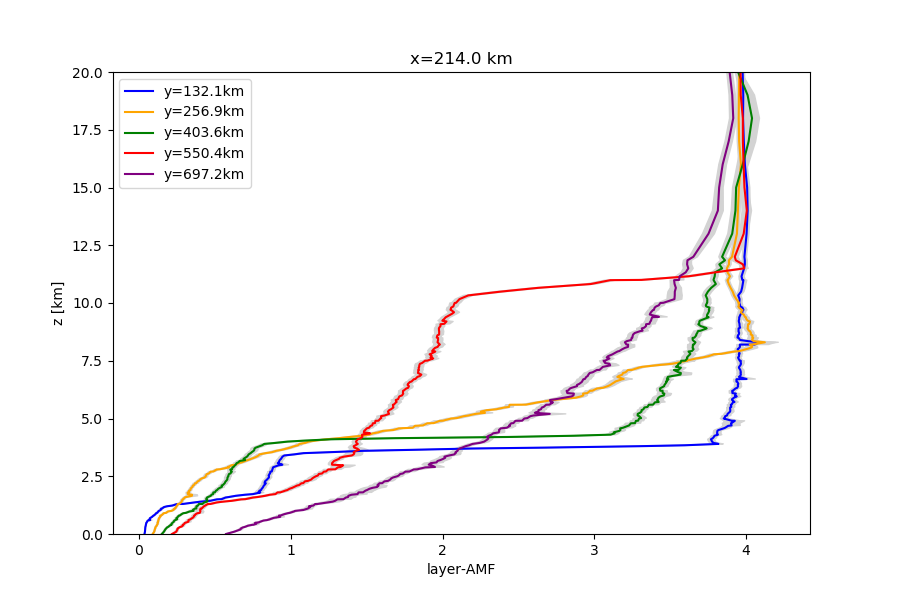

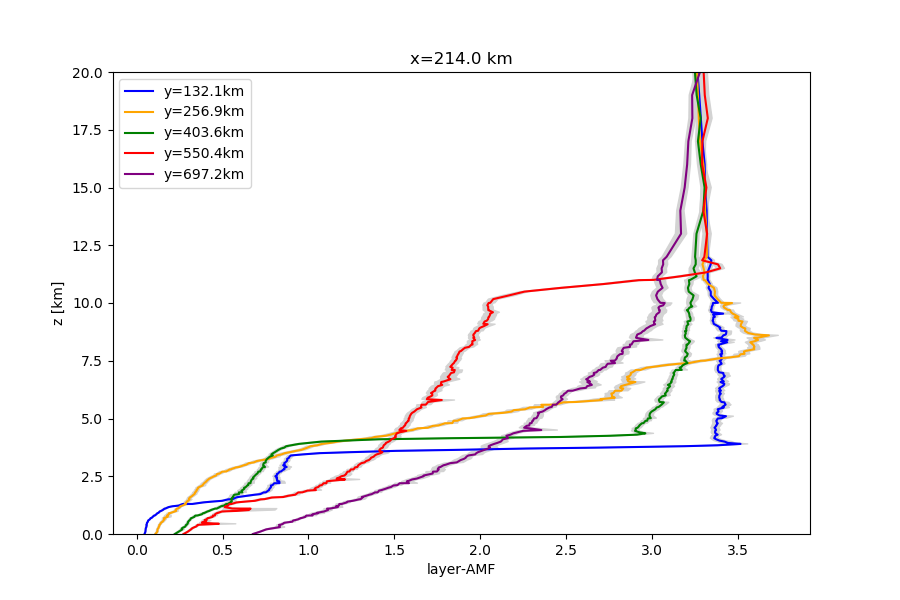

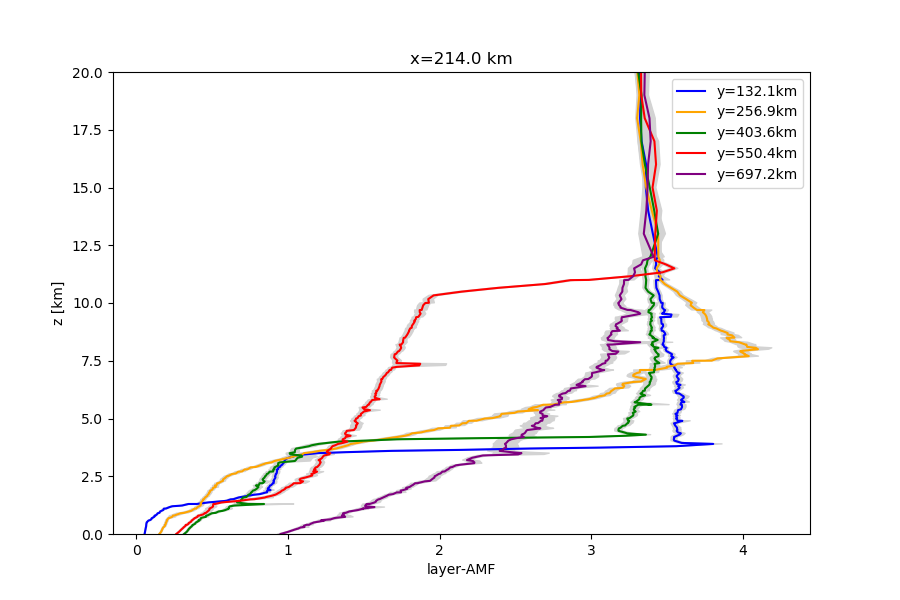

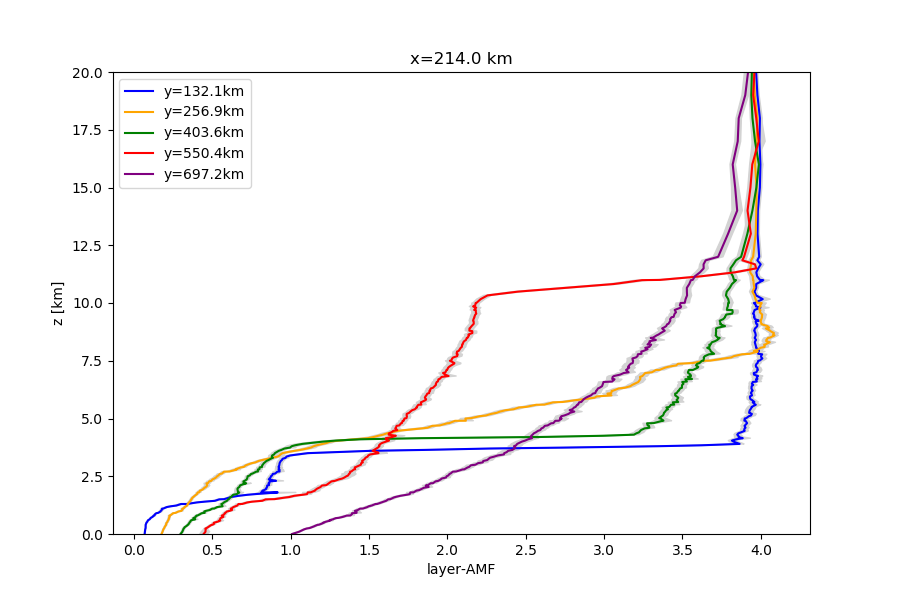

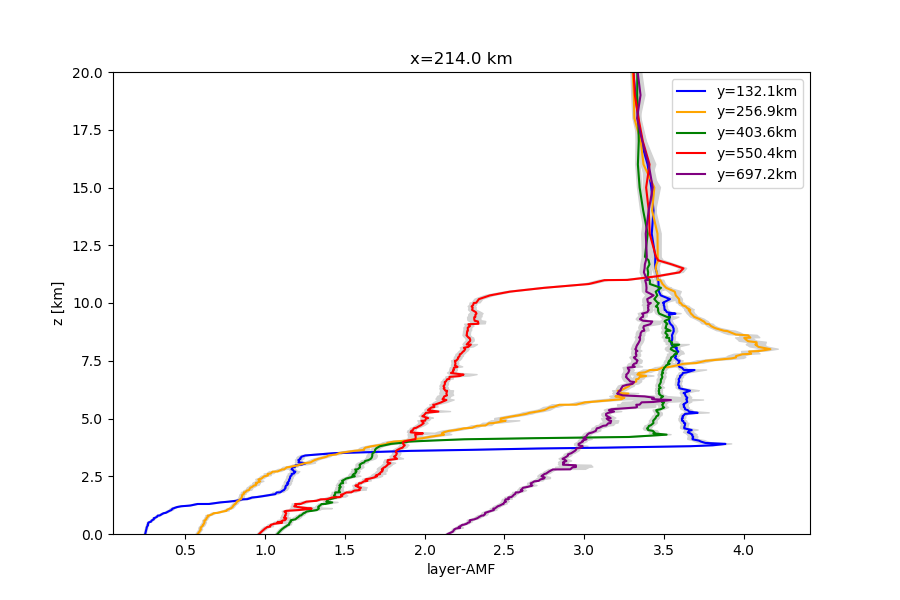

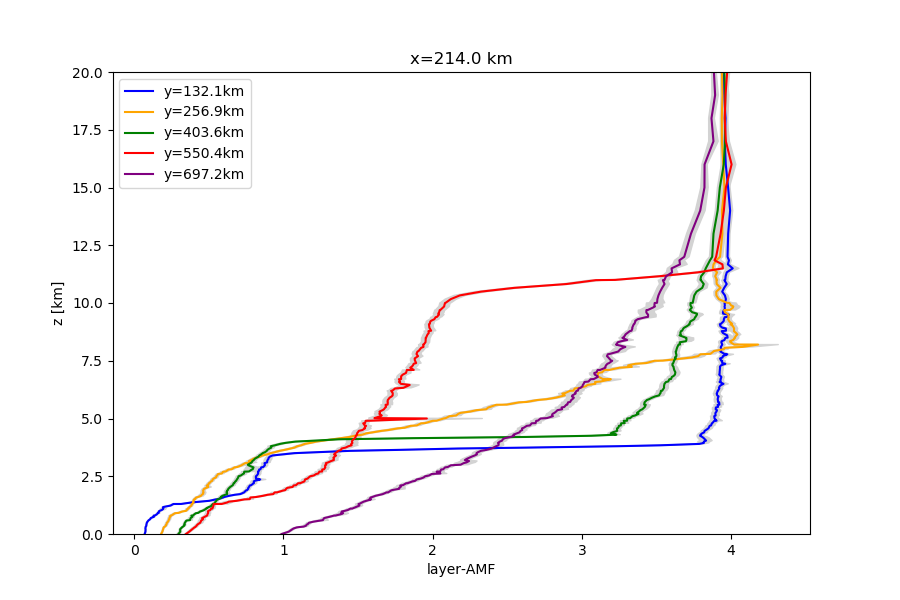

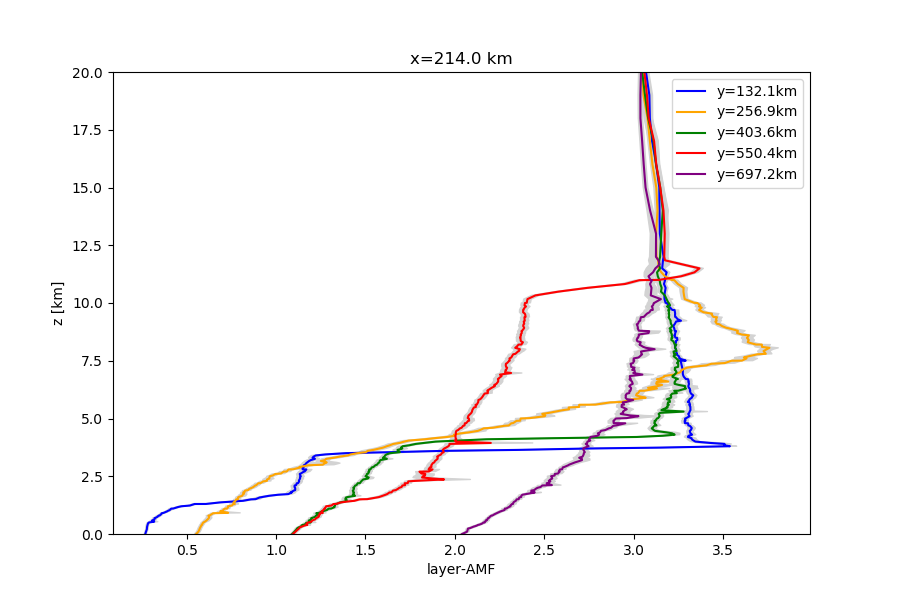

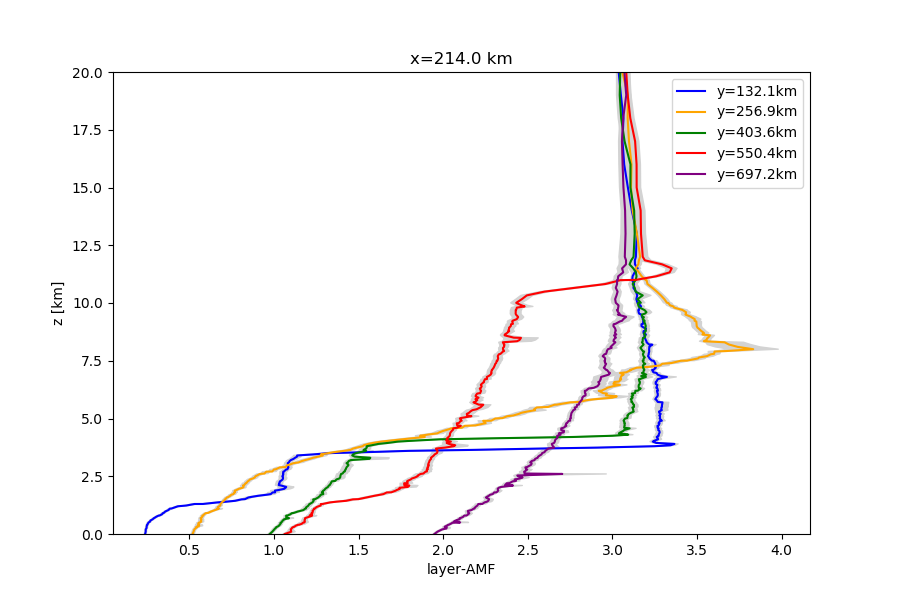

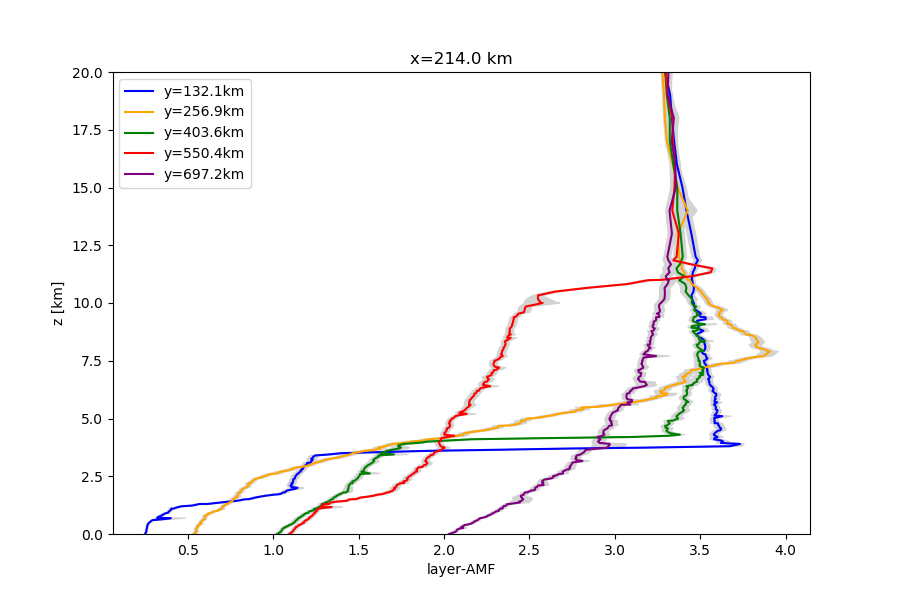

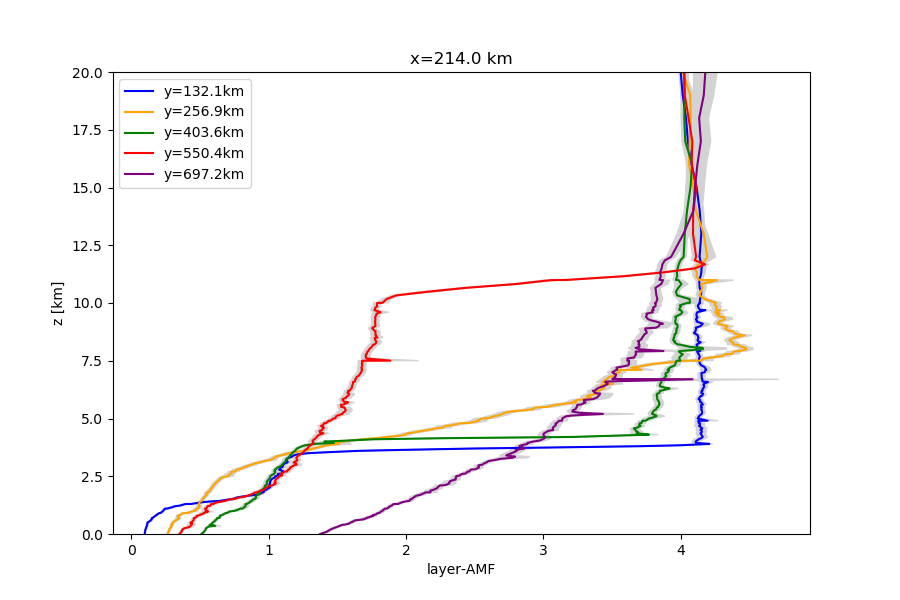

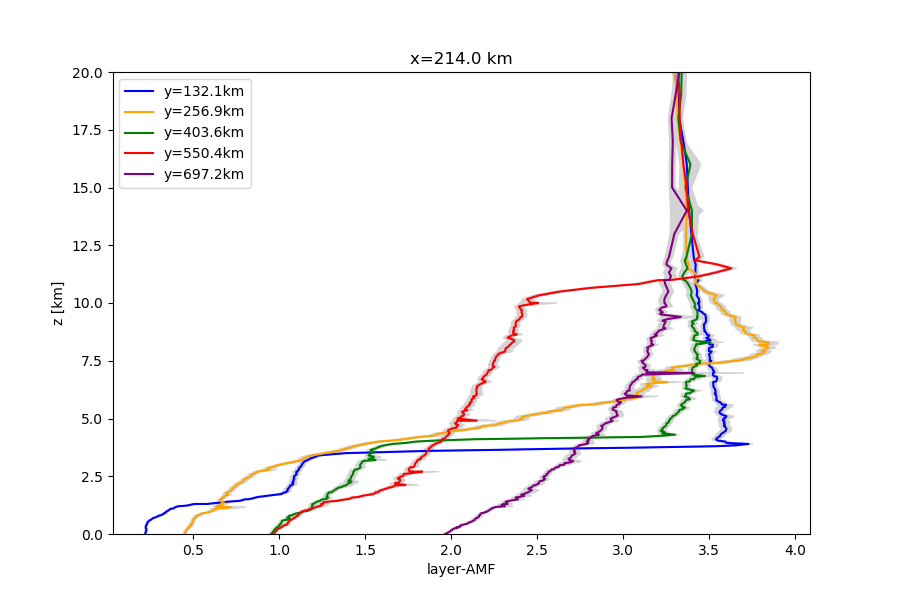

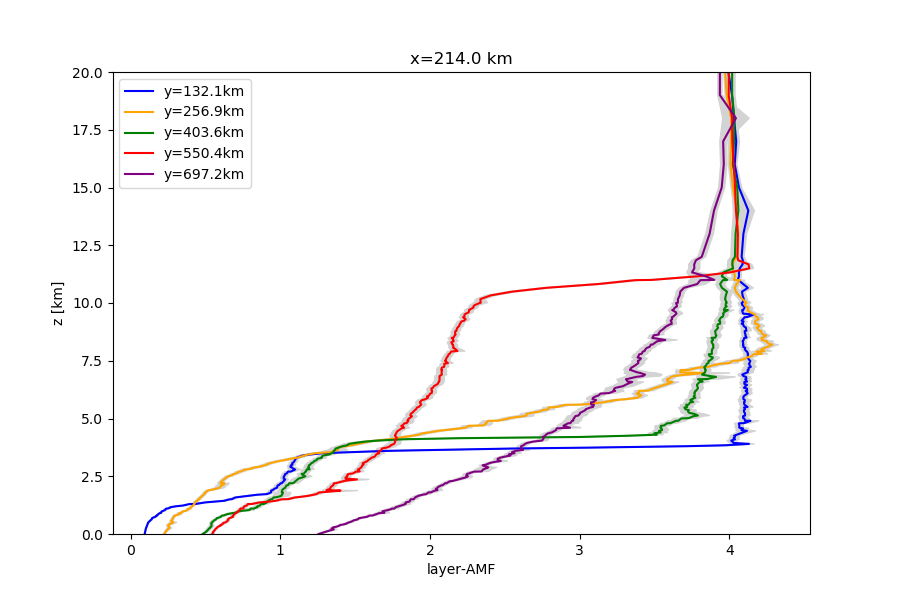

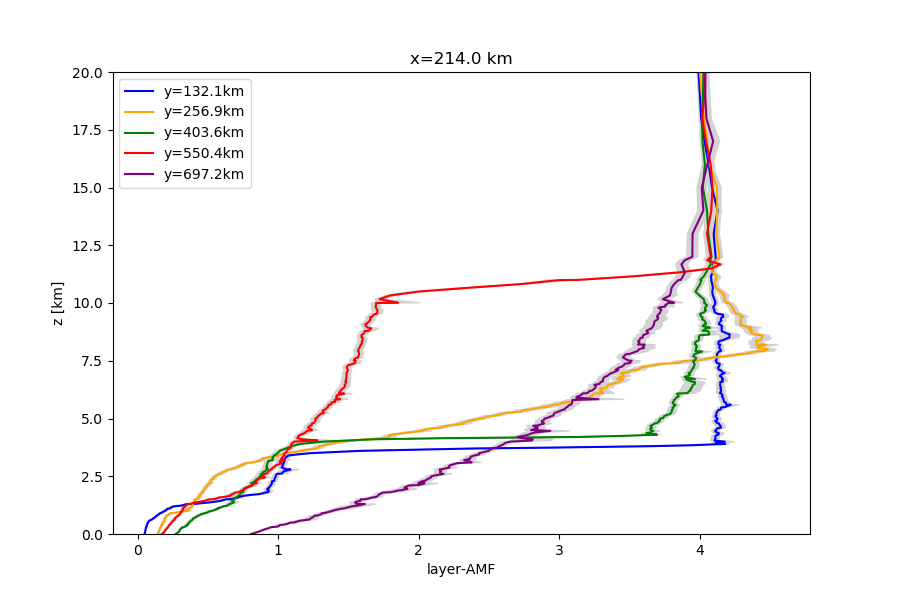

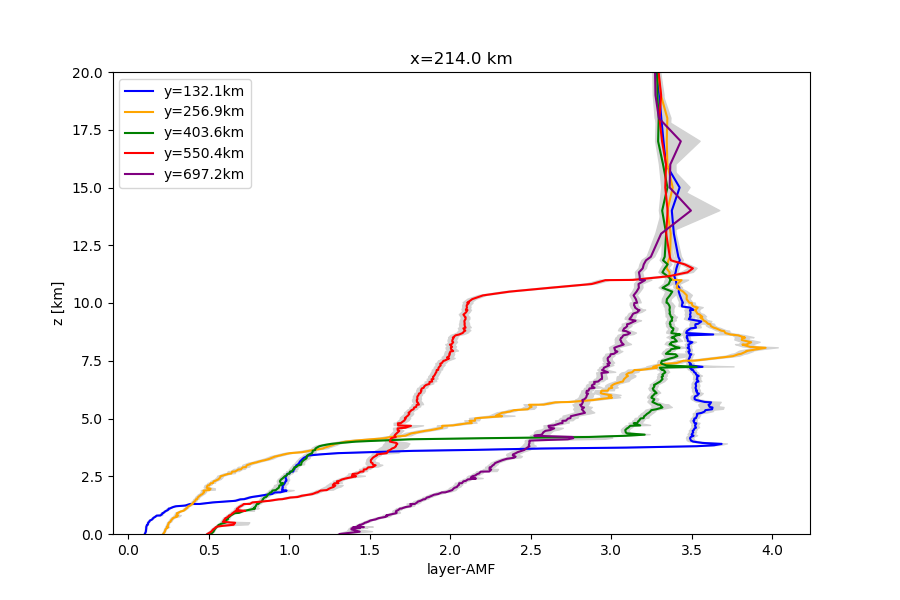

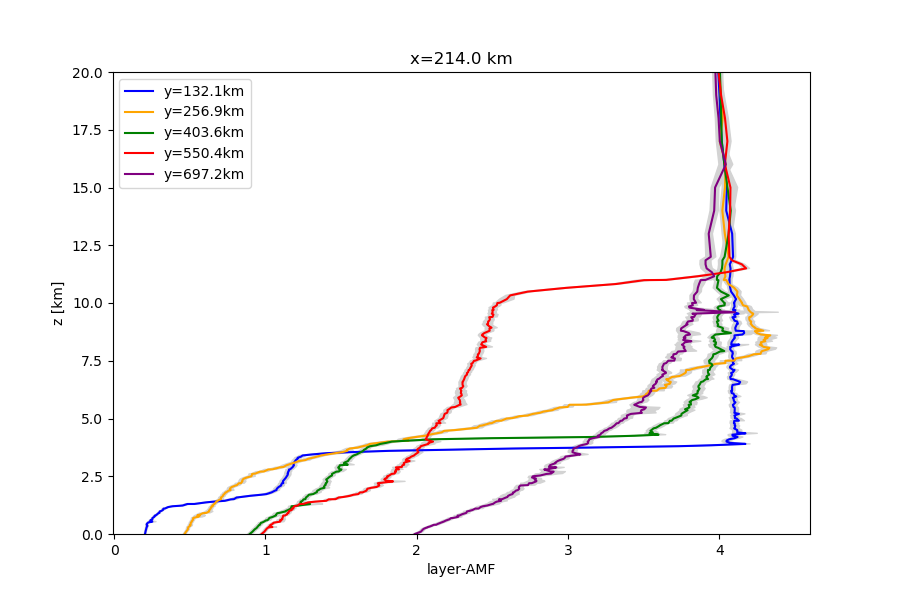

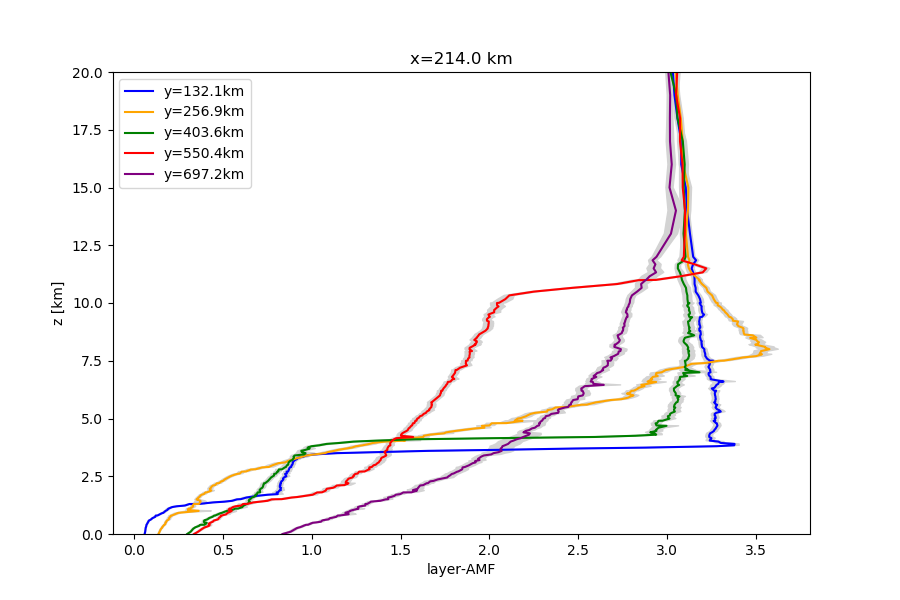

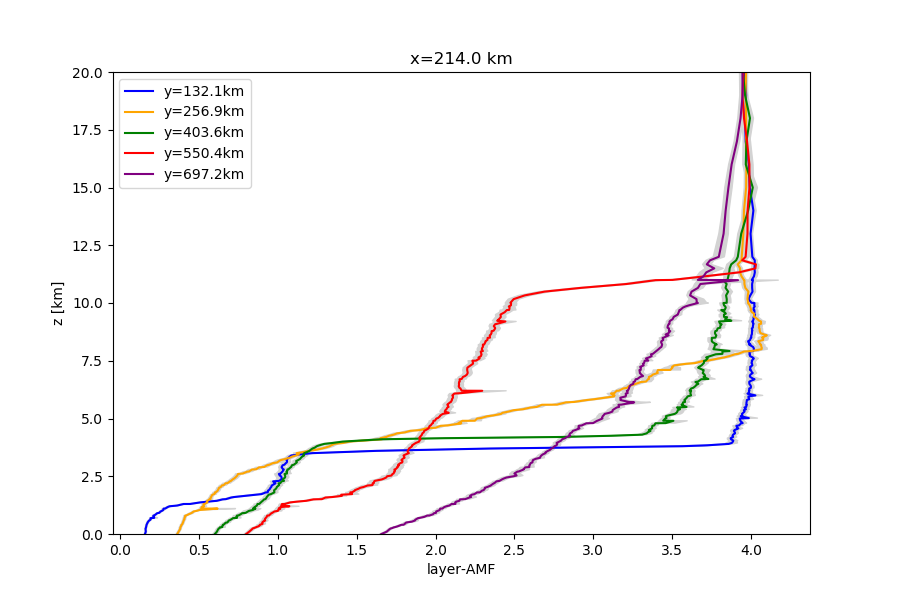

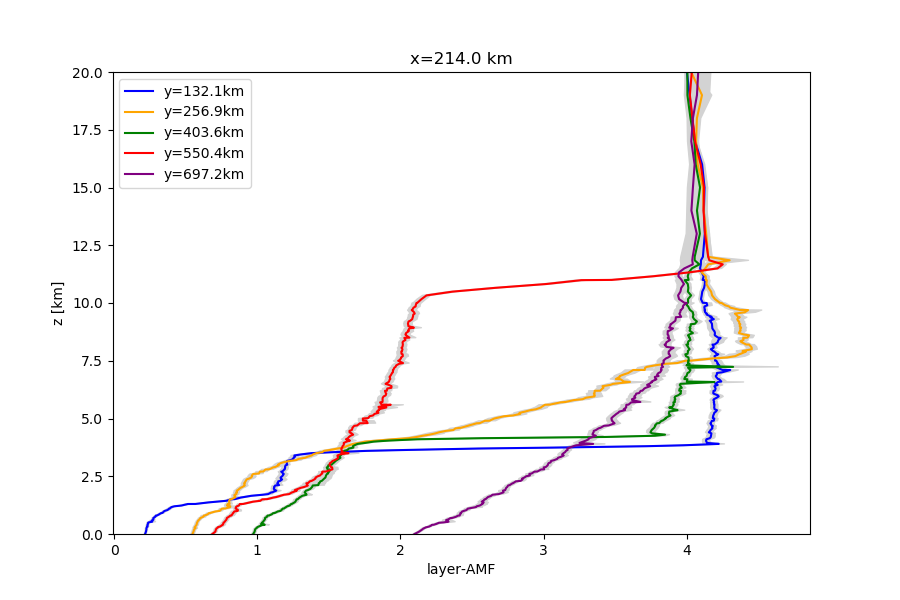

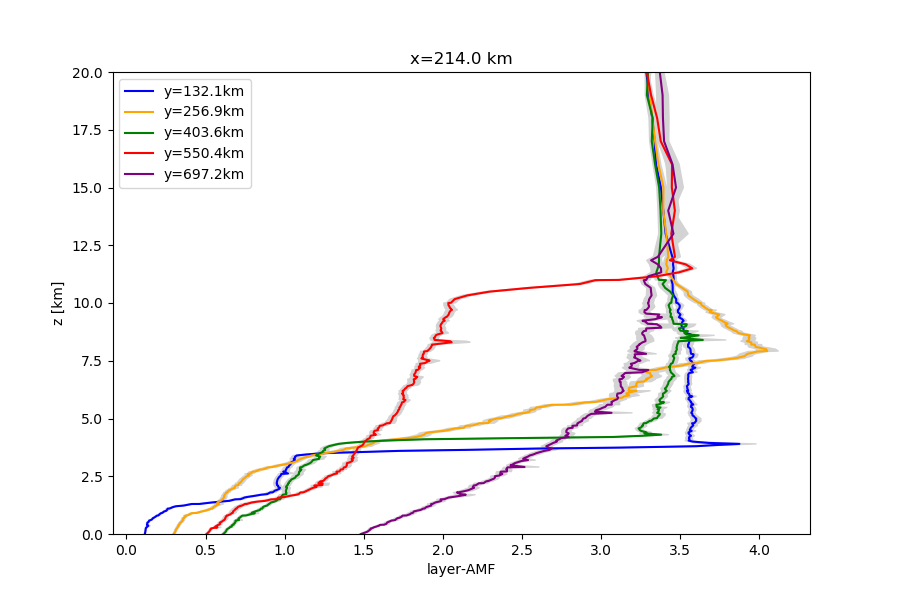

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 1

Settings: albedo 0.05 sza 20 phi0 315

Simulated reflectance.

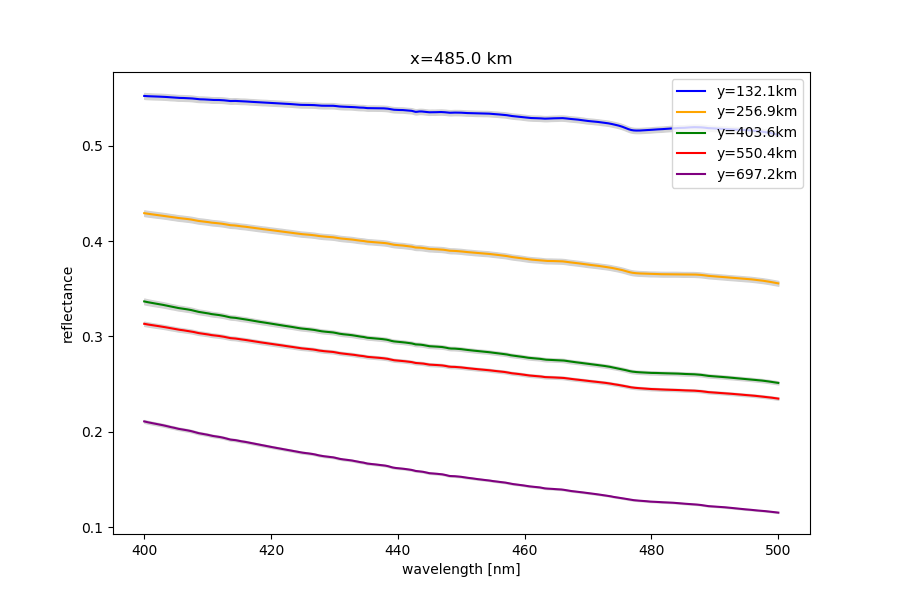

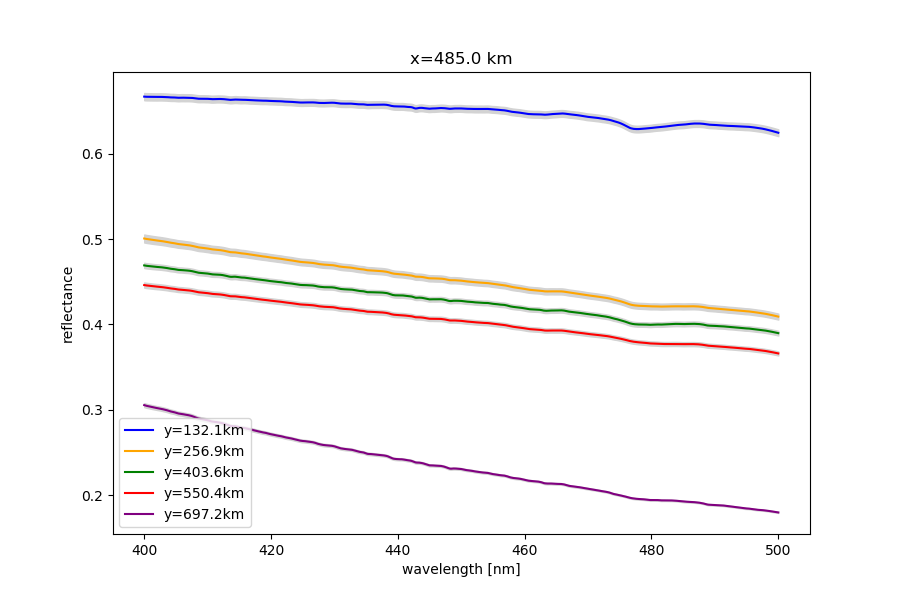

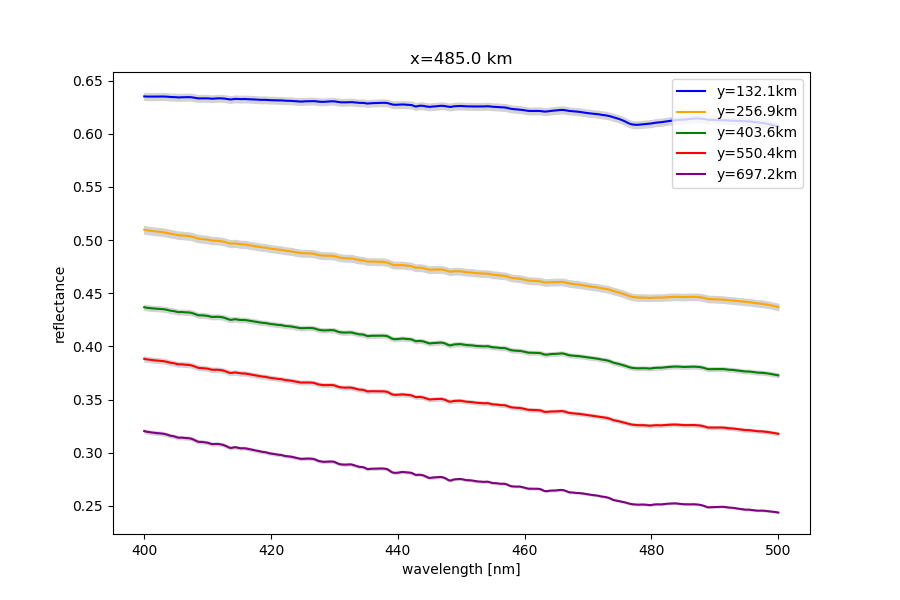

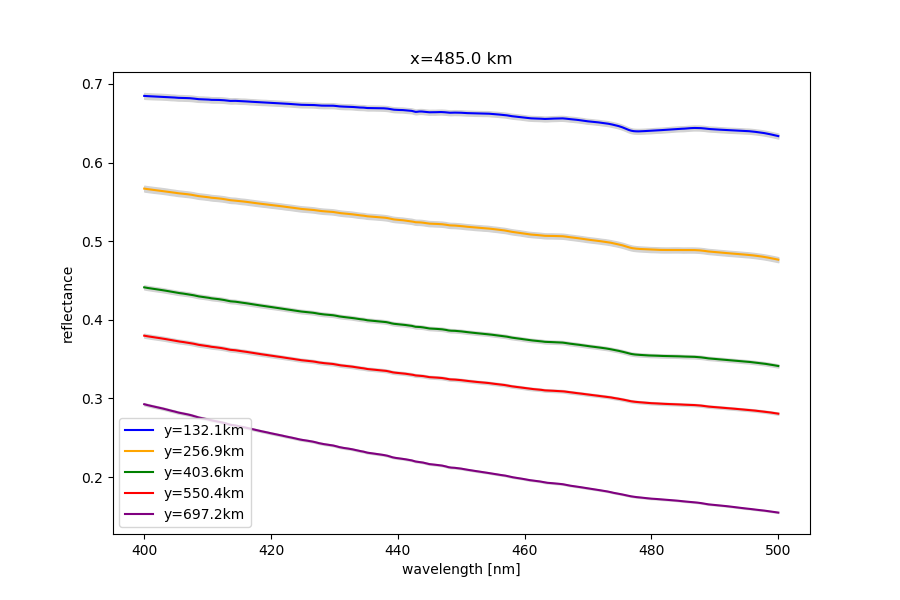

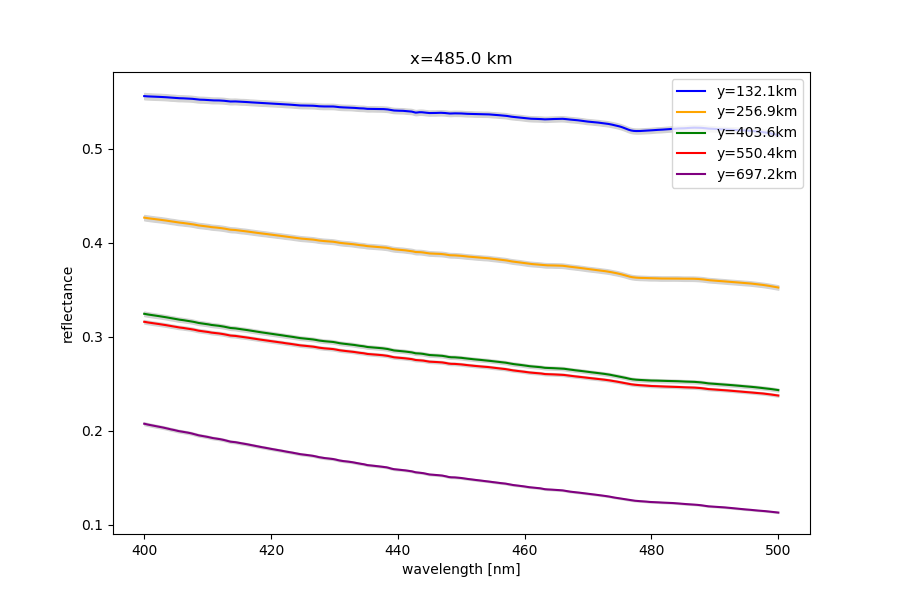

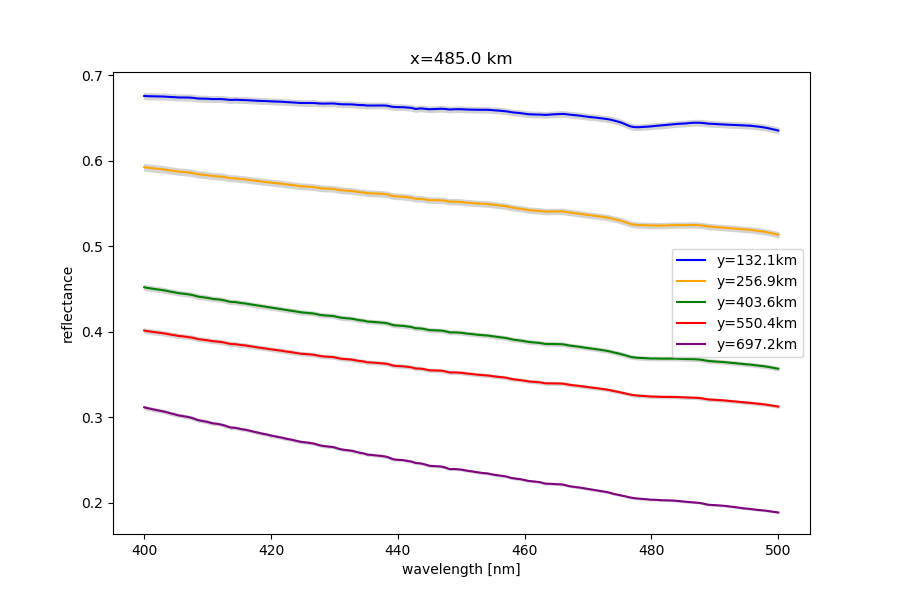

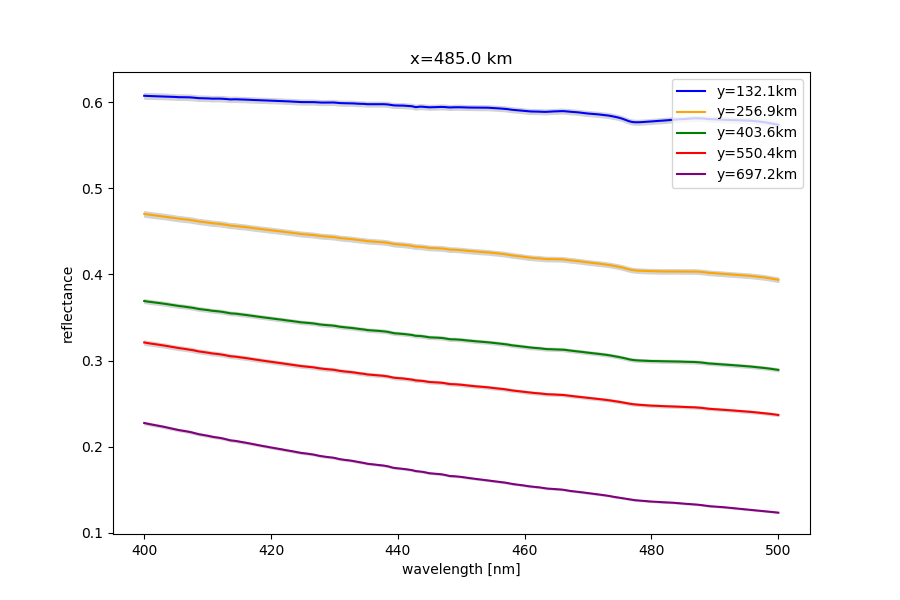

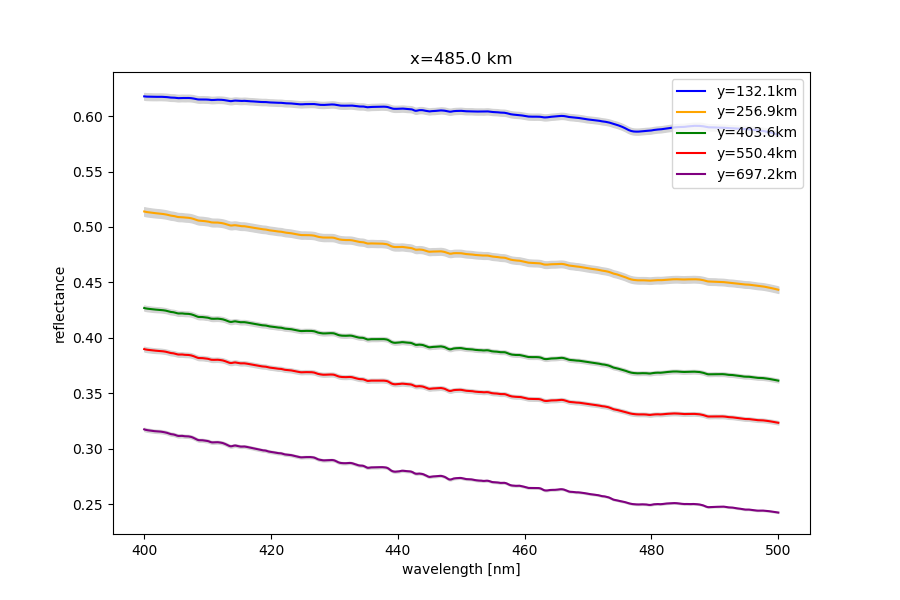

Reflectance spectra.

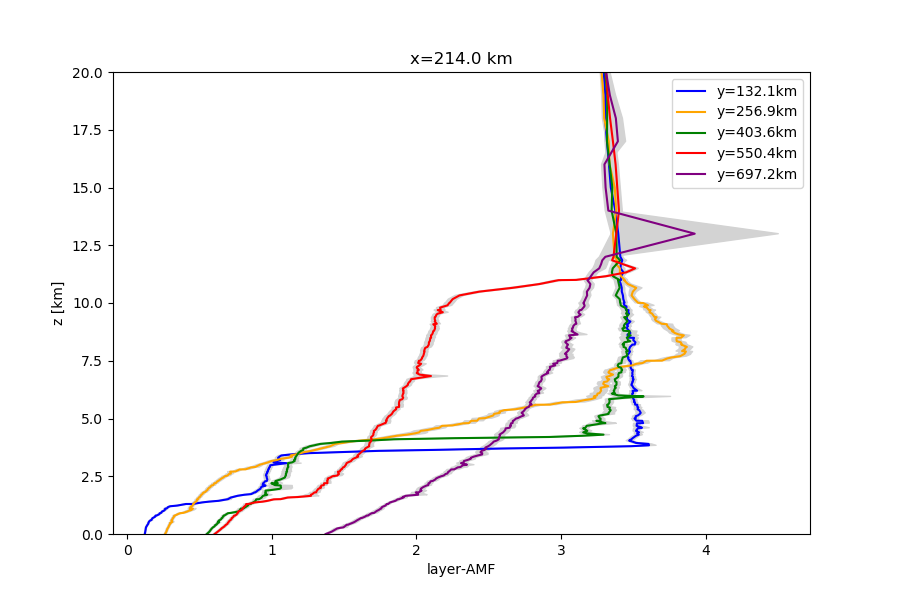

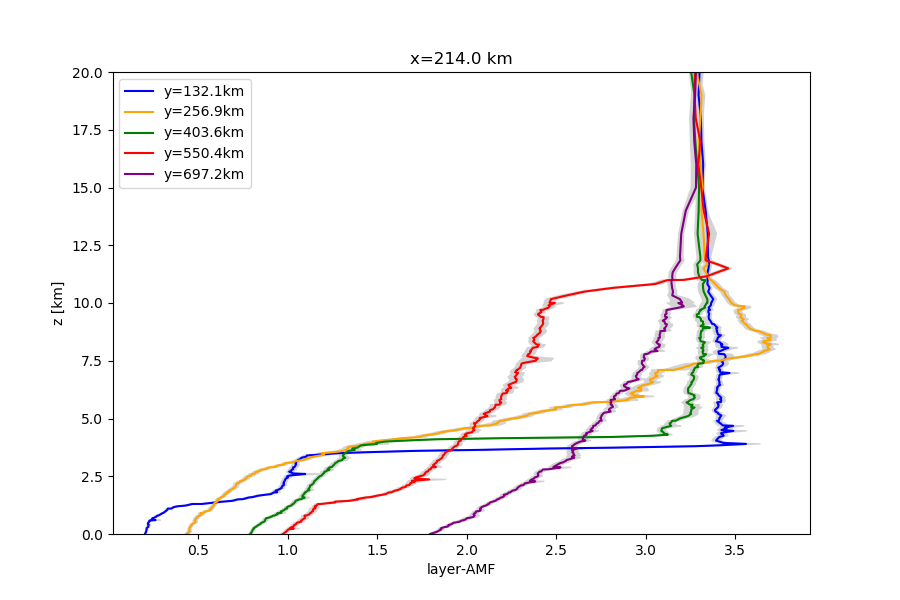

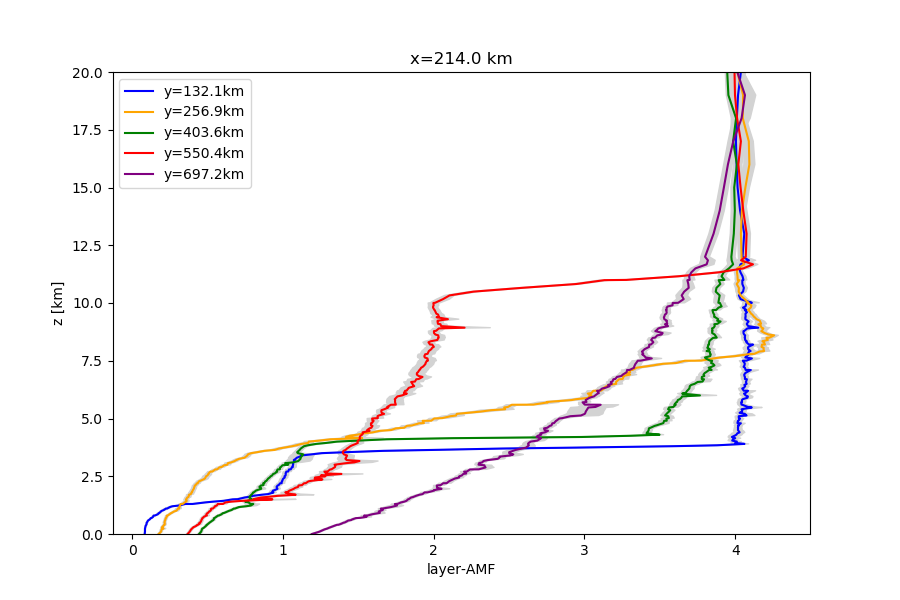

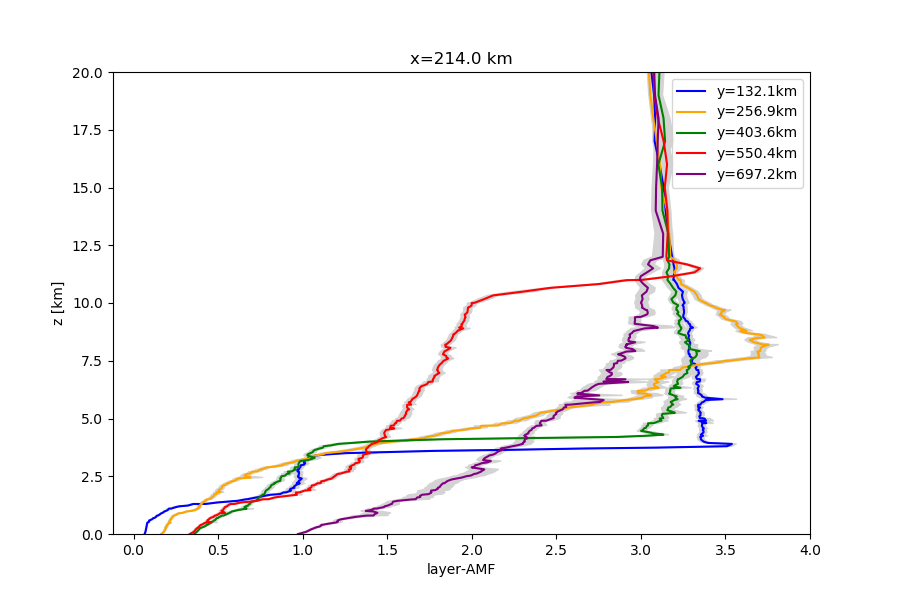

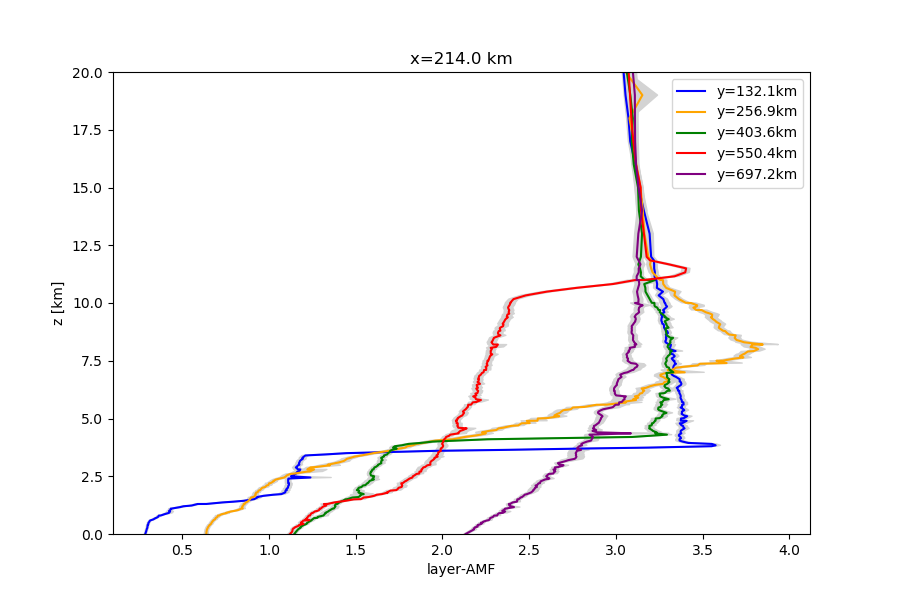

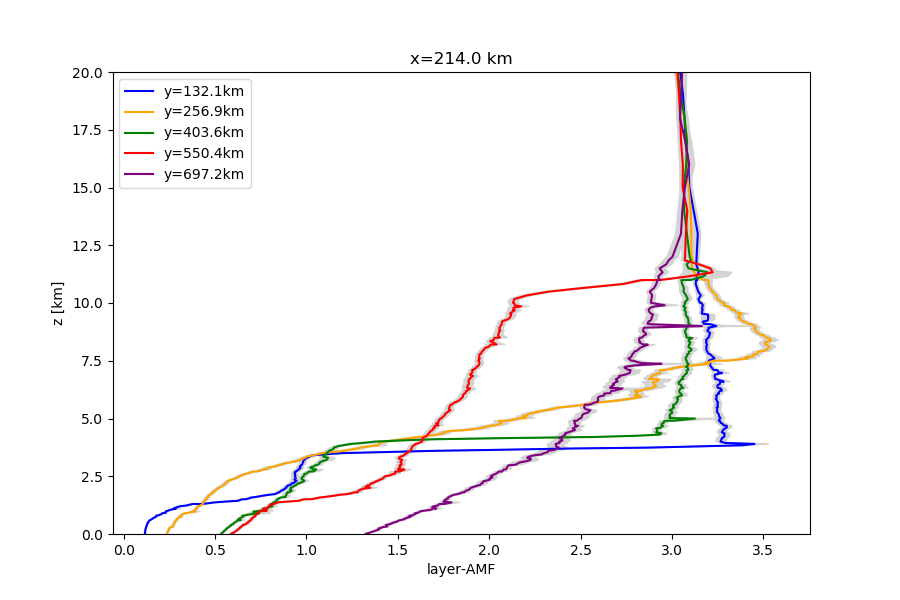

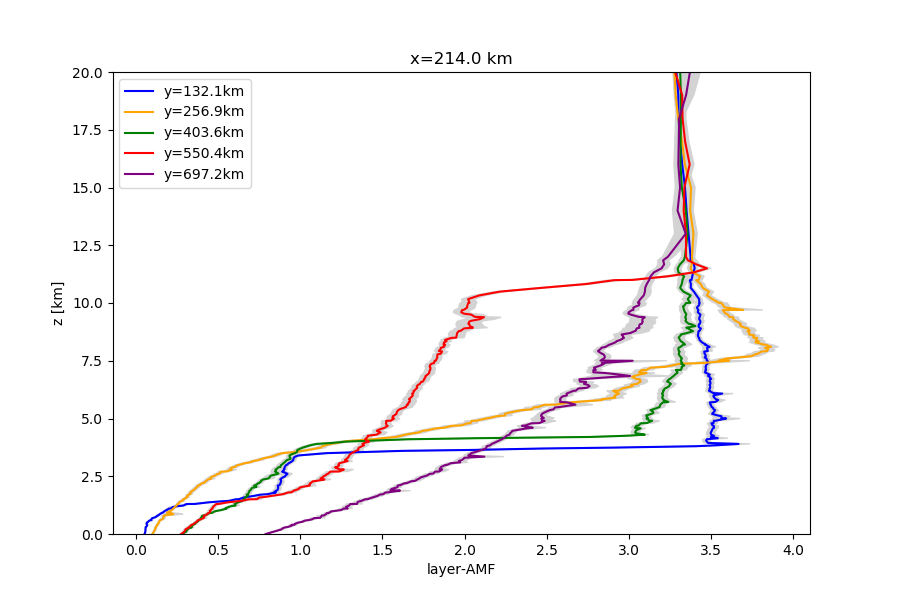

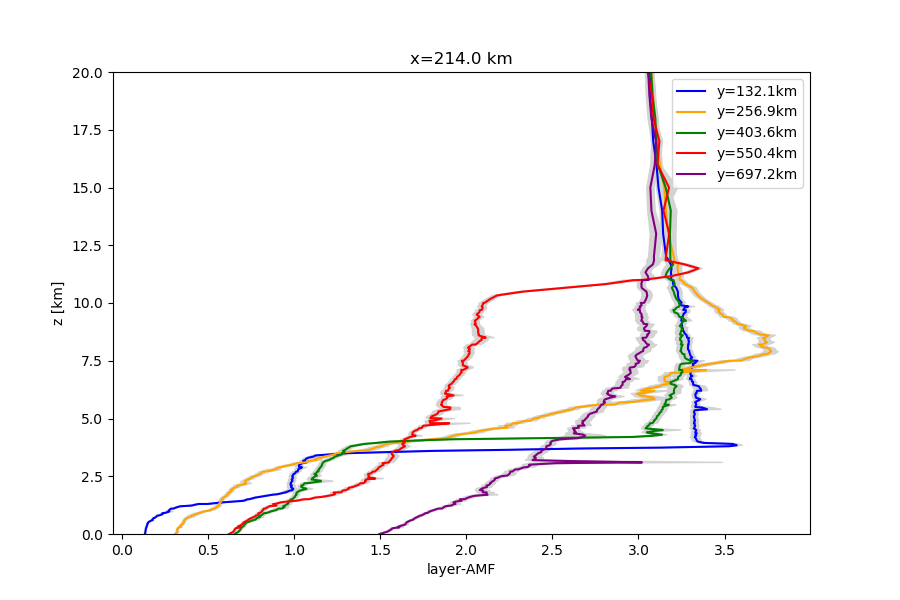

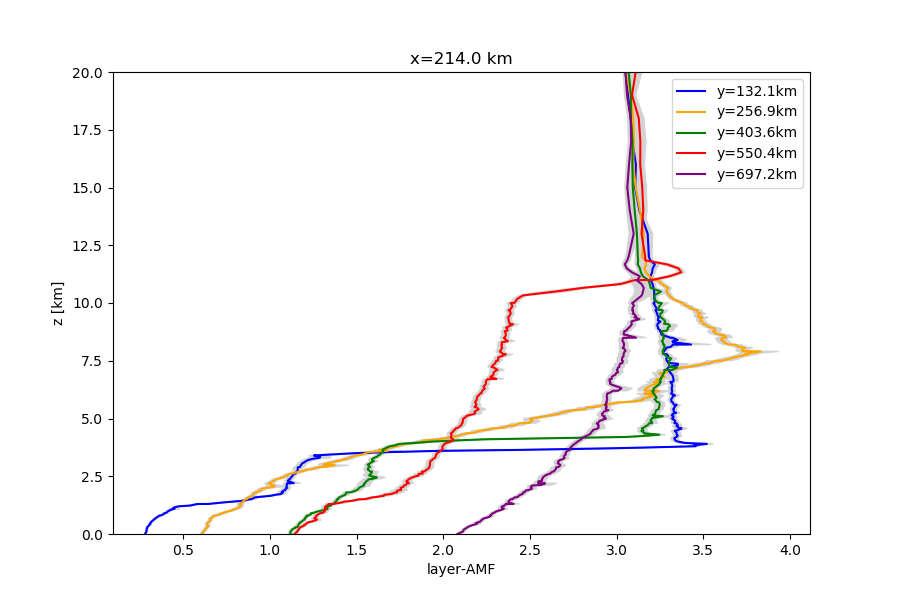

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 2

Settings: albedo 0.05 sza 20 phi0 0

Simulated reflectance.

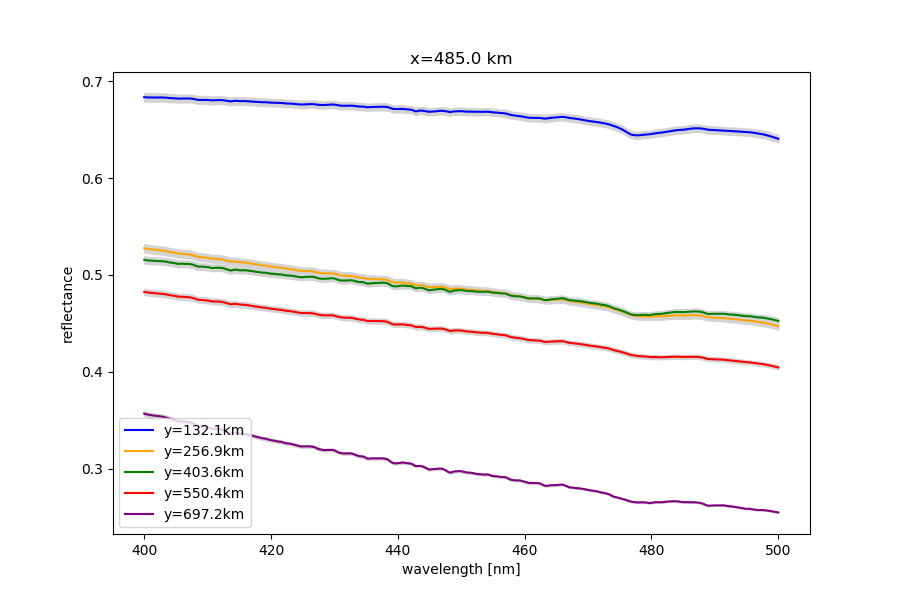

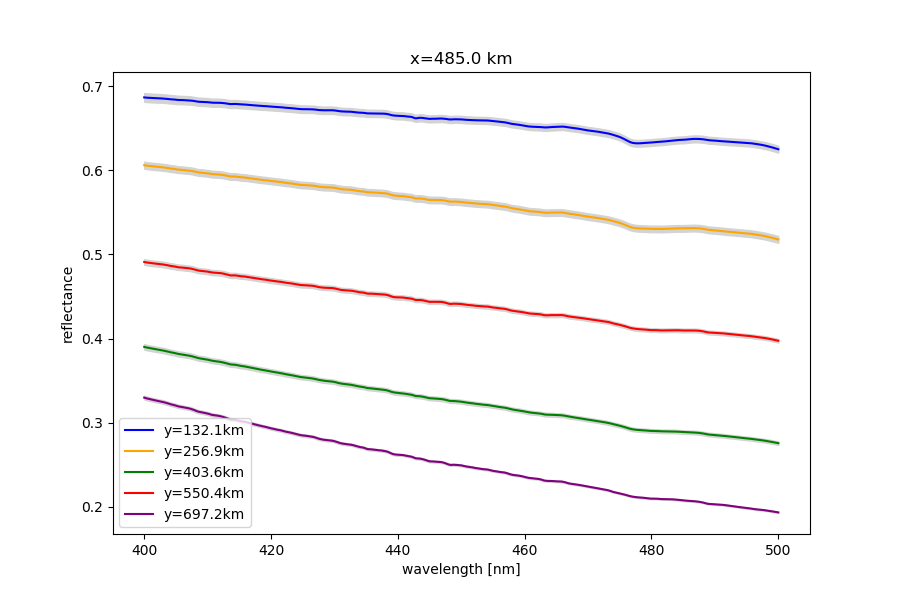

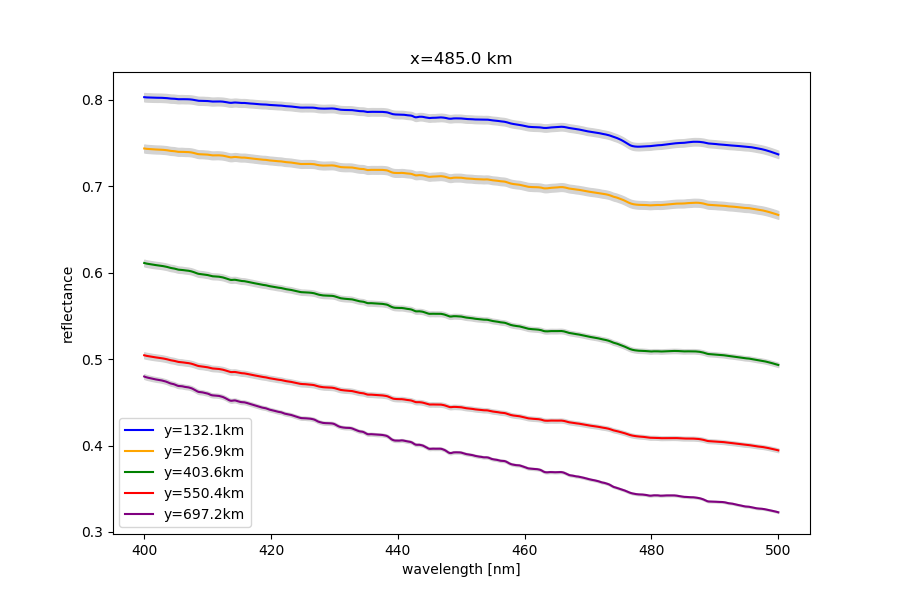

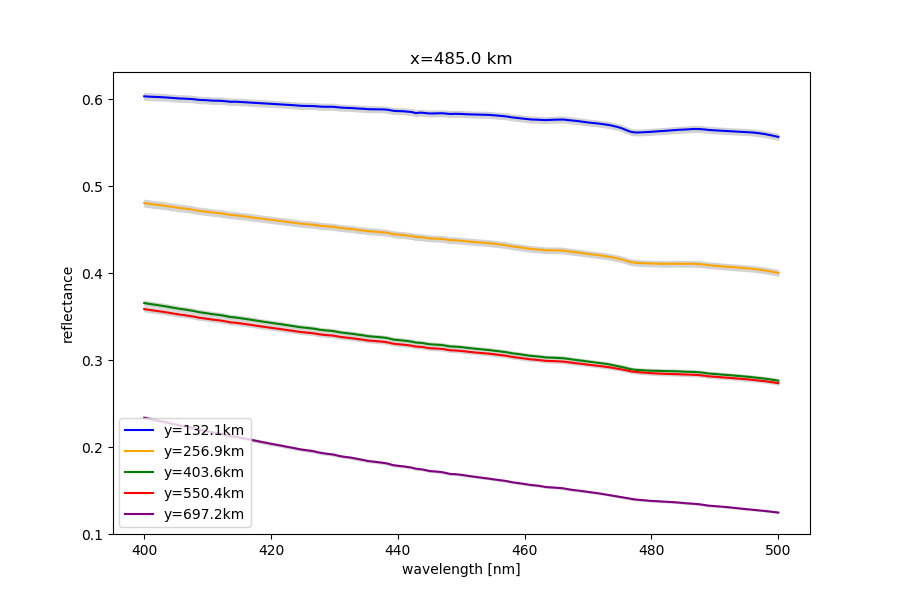

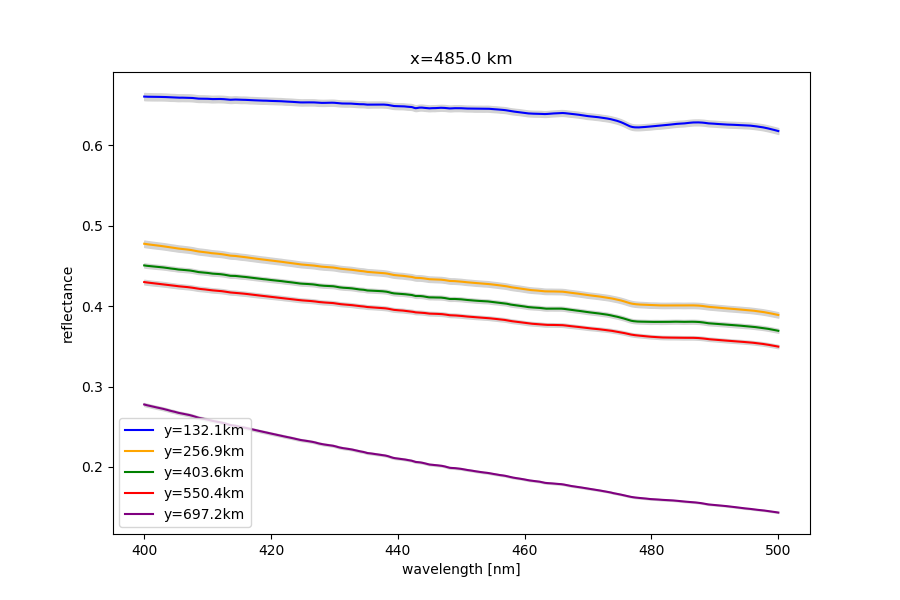

Reflectance spectra.

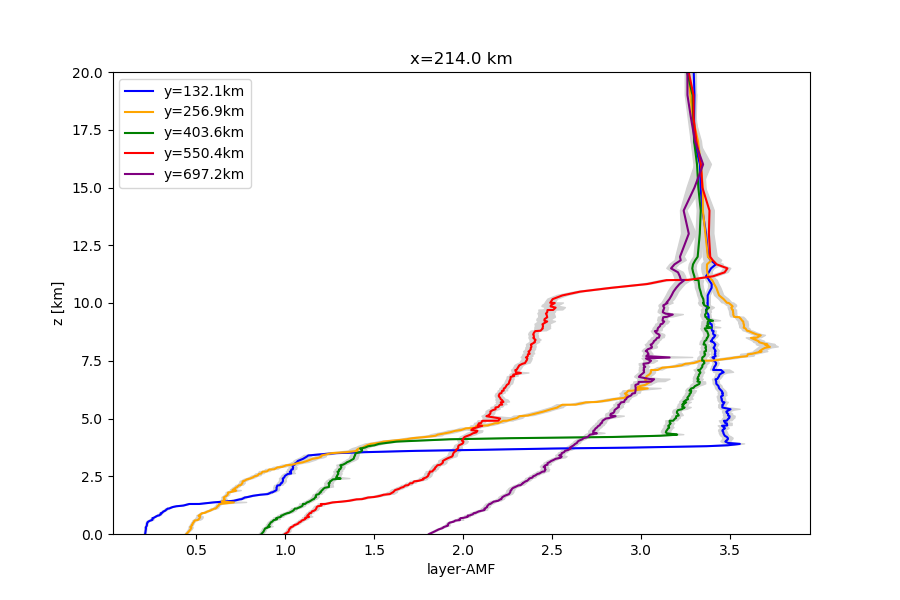

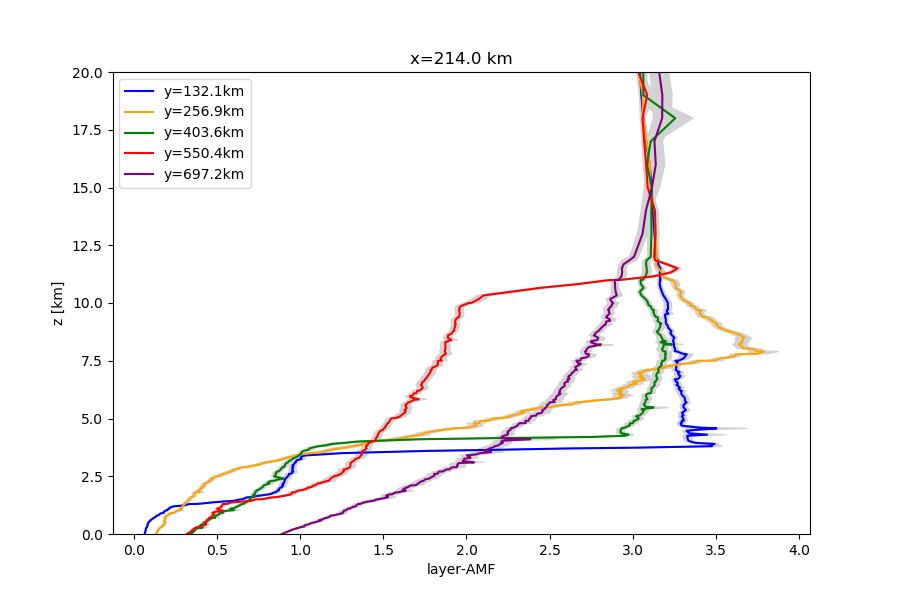

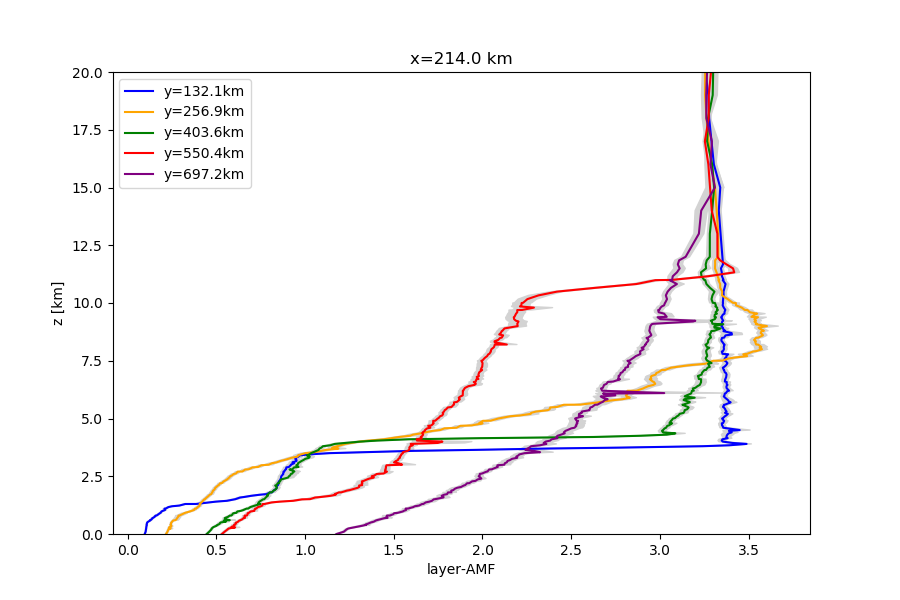

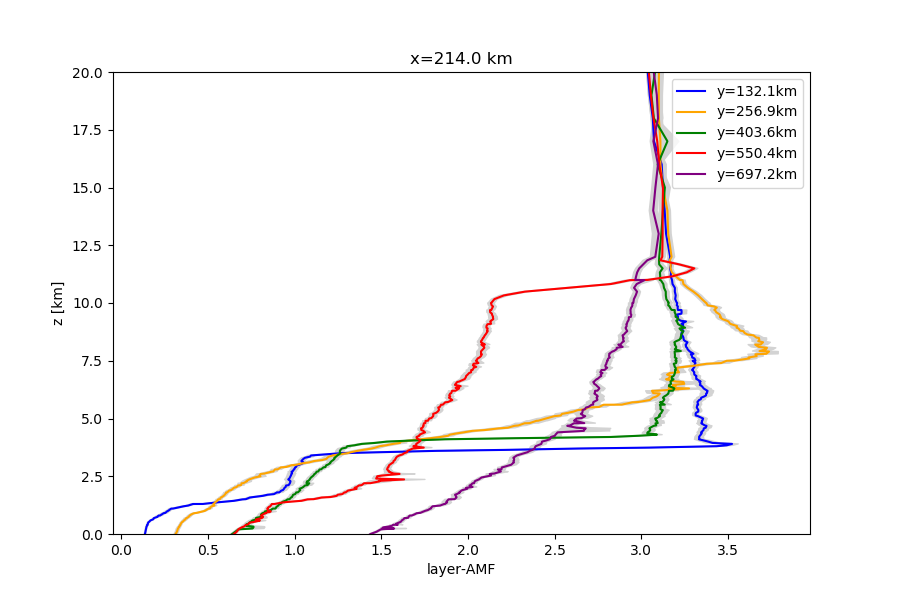

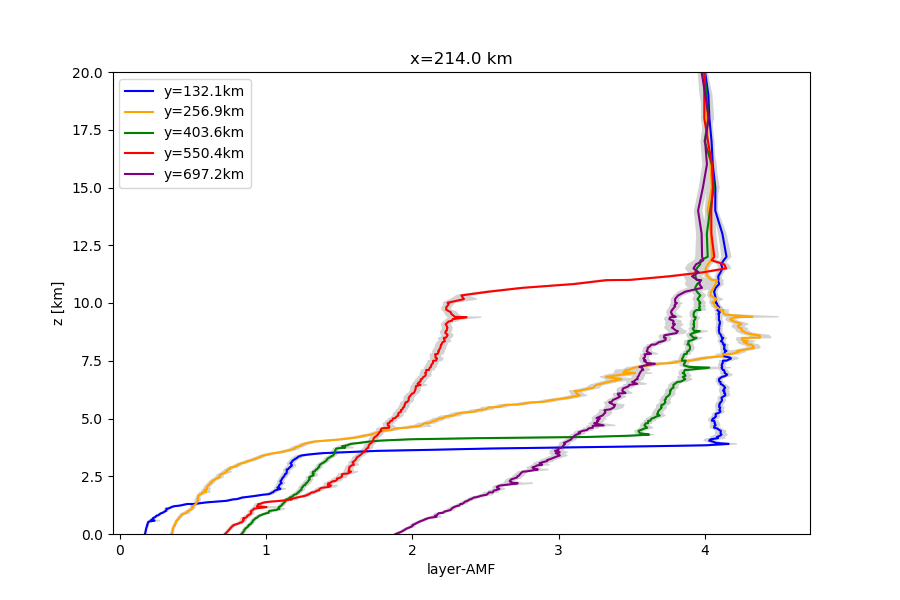

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 3

Settings: albedo 0.05 sza 20 phi0 45

Simulated reflectance.

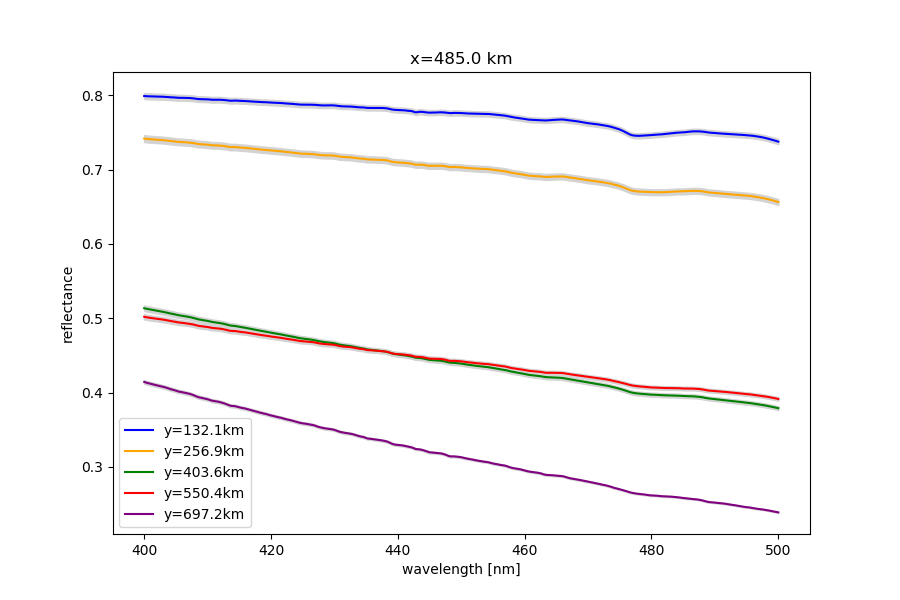

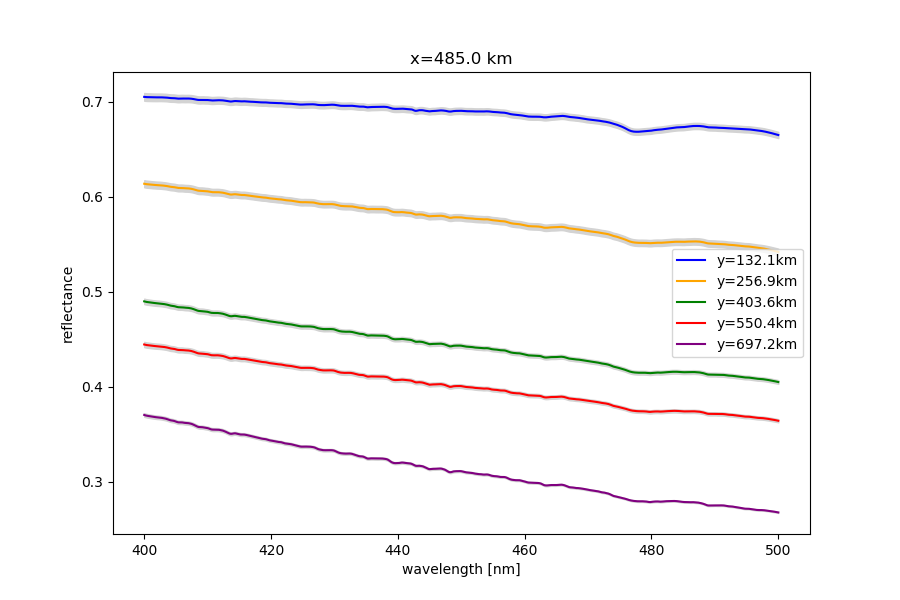

Reflectance spectra.

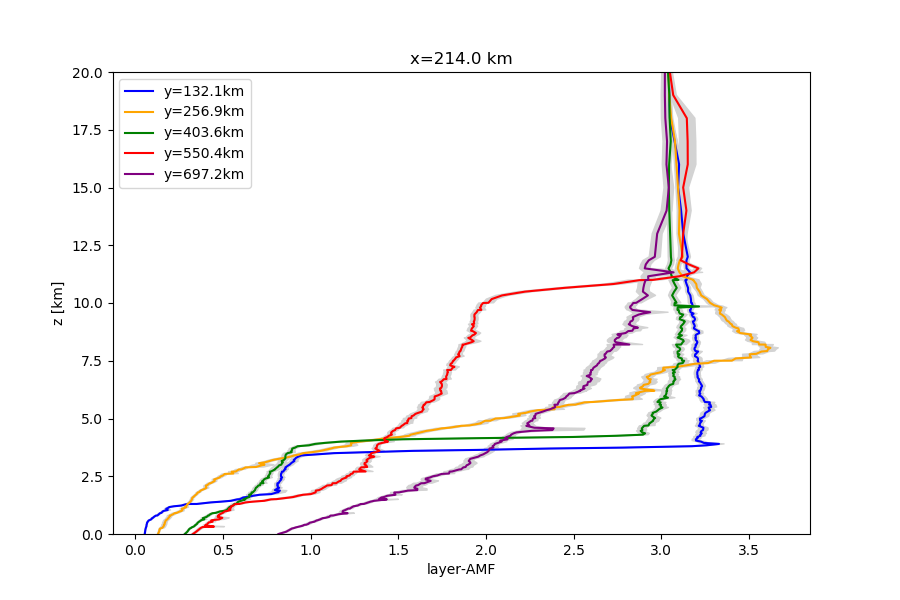

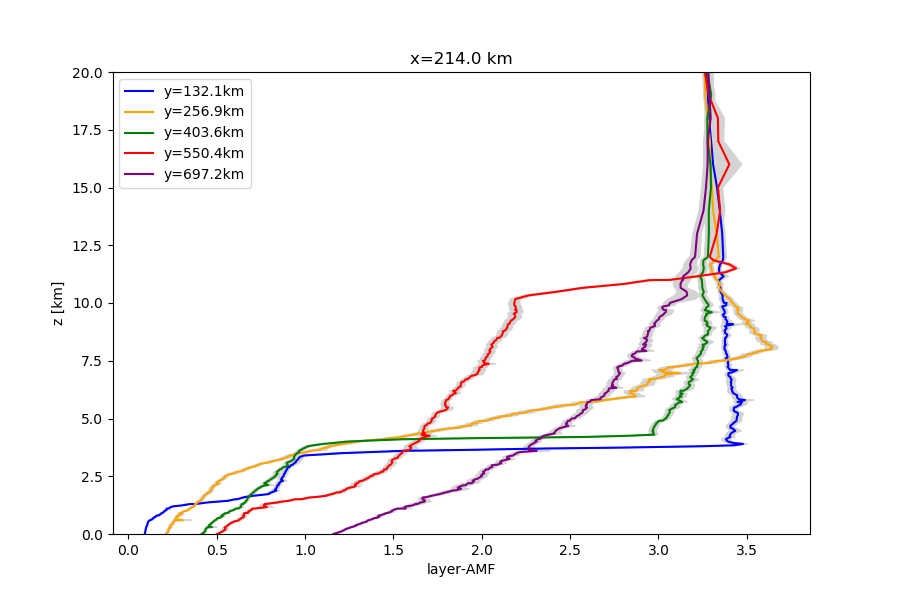

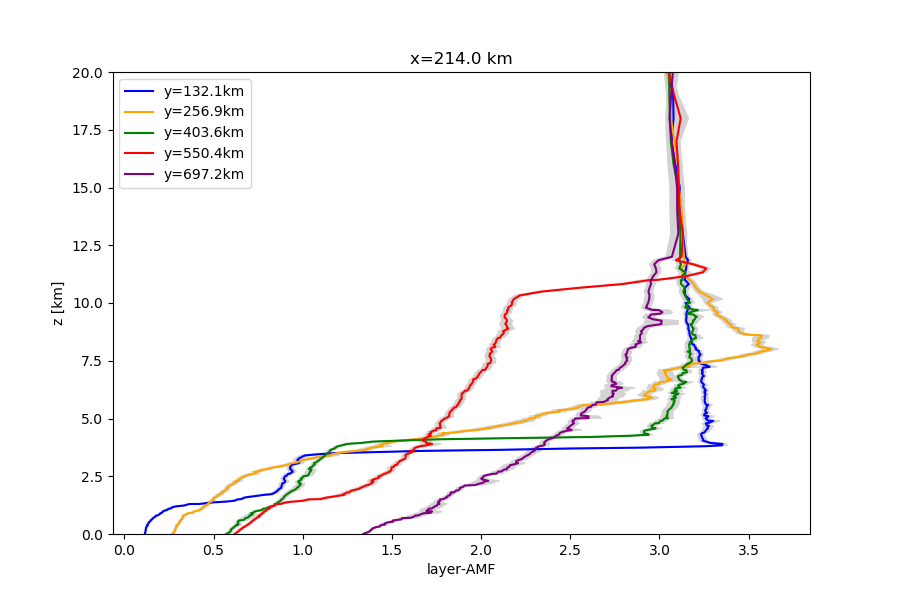

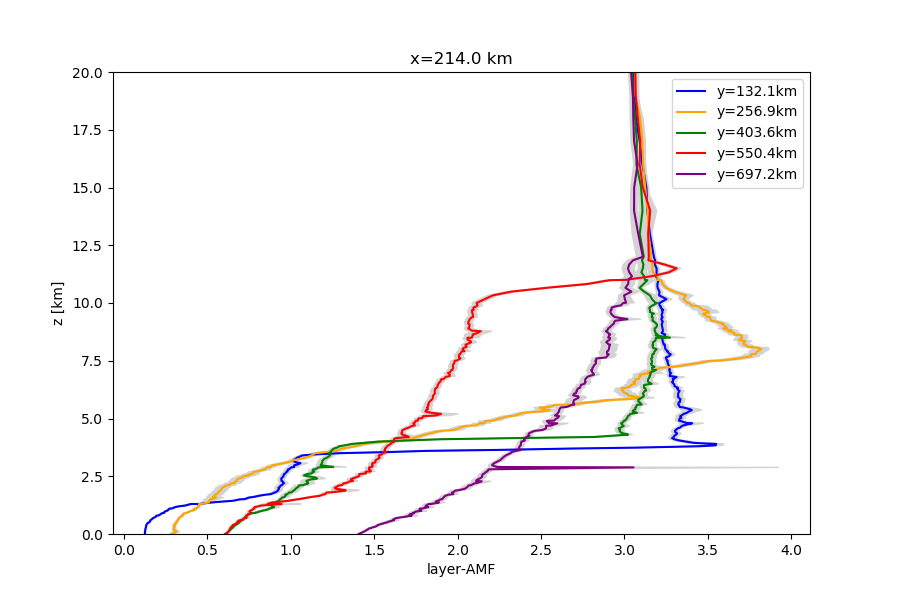

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 4

Settings: albedo 0.05 sza 20 phi0 90

Simulated reflectance.
Reflectance spectra.

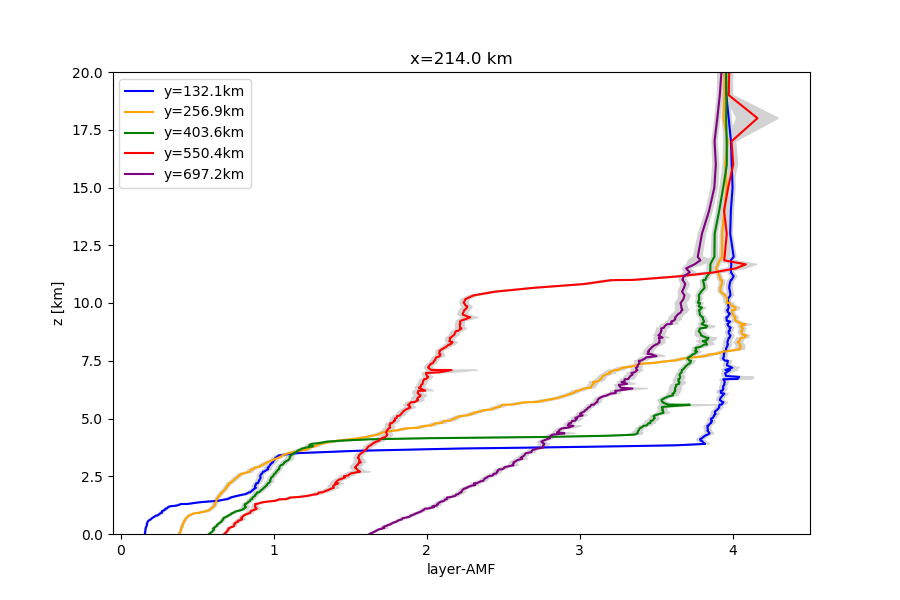

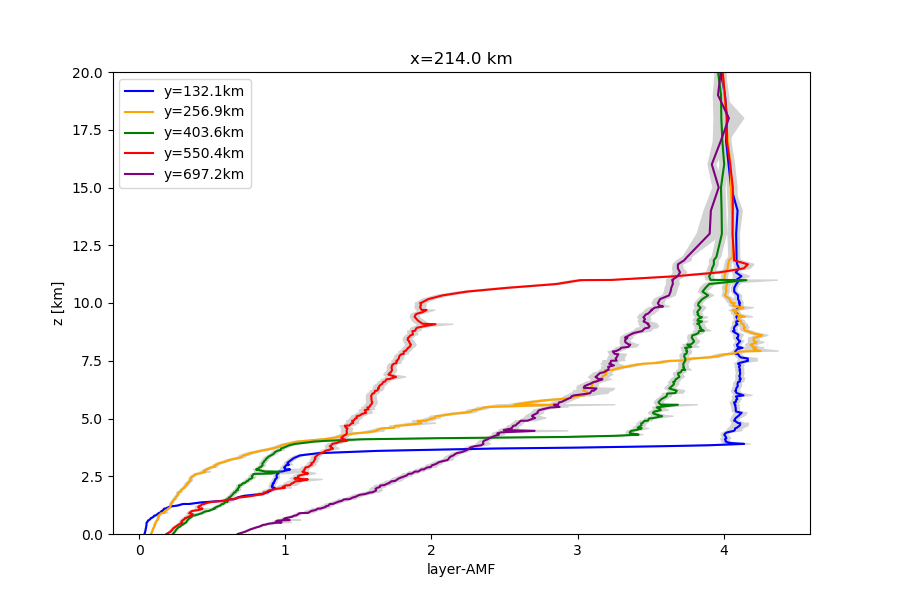

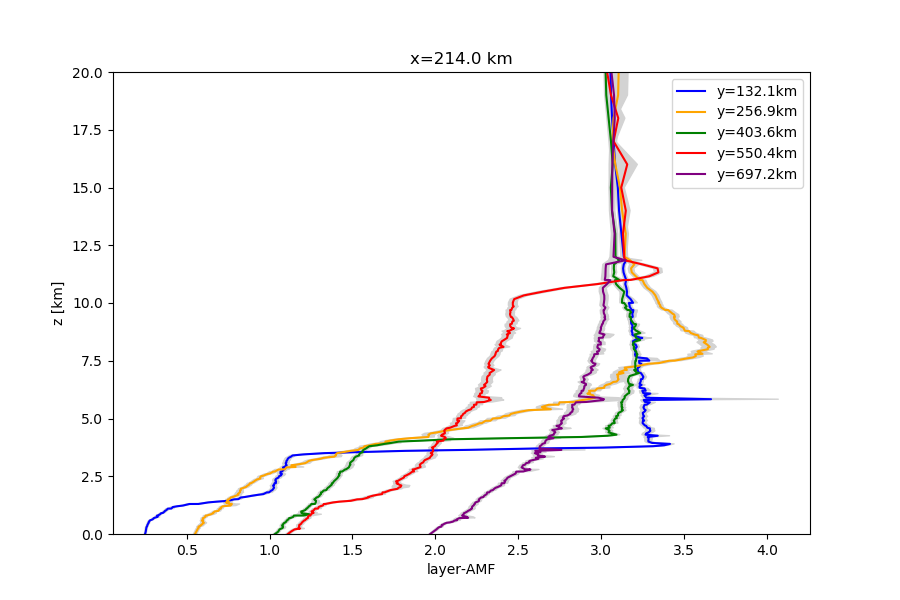

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 5

Settings: albedo 0.05 sza 40 phi0 270

Simulated reflectance.
Reflectance spectra.

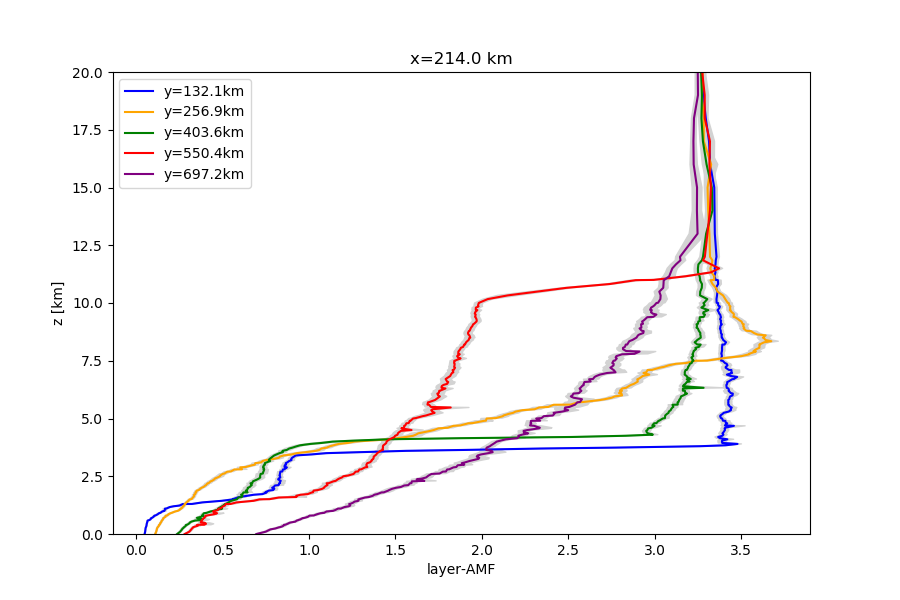

Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 6

Settings: albedo 0.05 sza 40 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 7

Settings: albedo 0.05 sza 40 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 8

Settings: albedo 0.05 sza 40 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 9

Settings: albedo 0.05 sza 40 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 10

Settings: albedo 0.05 sza 60 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 11

Settings: albedo 0.05 sza 60 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 12

Settings: albedo 0.05 sza 60 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 13

Settings: albedo 0.05 sza 60 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 14

Settings: albedo 0.05 sza 60 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 15

Settings: albedo 0.10 sza 20 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 16

Settings: albedo 0.10 sza 20 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 17

Settings: albedo 0.10 sza 20 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 18

Settings: albedo 0.10 sza 20 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 19

Settings: albedo 0.10 sza 20 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 20

Settings: albedo 0.10 sza 40 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 21

Settings: albedo 0.10 sza 40 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 22

Settings: albedo 0.10 sza 40 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 23

Settings: albedo 0.10 sza 40 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 24

Settings: albedo 0.10 sza 40 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 25

Settings: albedo 0.10 sza 60 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 26

Settings: albedo 0.10 sza 60 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 27

Settings: albedo 0.10 sza 60 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 28

Settings: albedo 0.10 sza 60 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 29

Settings: albedo 0.10 sza 60 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 30

Settings: albedo 0.20 sza 20 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 31

Settings: albedo 0.20 sza 20 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 32

Settings: albedo 0.20 sza 20 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 33

Settings: albedo 0.20 sza 20 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 34

Settings: albedo 0.20 sza 20 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 35

Settings: albedo 0.20 sza 40 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 36

Settings: albedo 0.20 sza 40 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 37

Settings: albedo 0.20 sza 40 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 38

Settings: albedo 0.20 sza 40 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 39

Settings: albedo 0.20 sza 40 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 40

Settings: albedo 0.20 sza 60 phi0 270

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 41

Settings: albedo 0.20 sza 60 phi0 315

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 42

Settings: albedo 0.20 sza 60 phi0 0

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 43

Settings: albedo 0.20 sza 60 phi0 45

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)

Results for case 44

Settings: albedo 0.20 sza 60 phi0 90

Simulated reflectance.
Reflectance spectra.
Layer-AMfs.

MYSTIC results (spectral reflectance and box-AMFs at 460nm)
