• Subdomain of ICON, approx. 350x350km²
• Resolution of cloud data approx. 1.2×1.2km², 296x276x110 grid boxes
• Simulations performed for pixel size of 7x7km² (50×48 pixels)

• wavelength: 550nm
• US standard atmosphere
• SZA: 30°, SAA: 25°
• Viewing direction: nadir
• surface albedo: 0.05
• clouds from ICON simulation

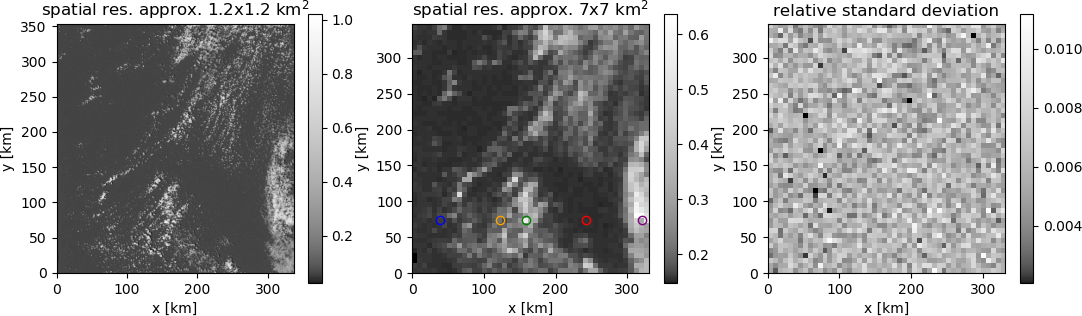

Simulated reflectance. The left side is simulated on the same horizontal resolution as the cloud data (approx. 1.2×1.2km²), the middle is for a pixel size of approx. 7×7 m². The right panel shows the standard deviation of the reflectance for 10^5 photons per pixel.

Reflectance spectra for pixels indicated in figure above. The shaded areas show the standard deviation of the Monte Carlo results.

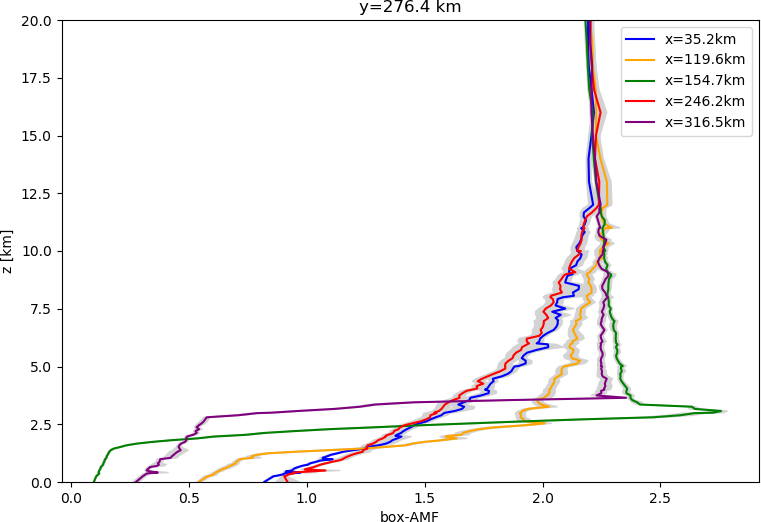

Layer-AMfs for pixels indicated in figure above. The shaded areas show the standard deviation of the Monte Carlo results.

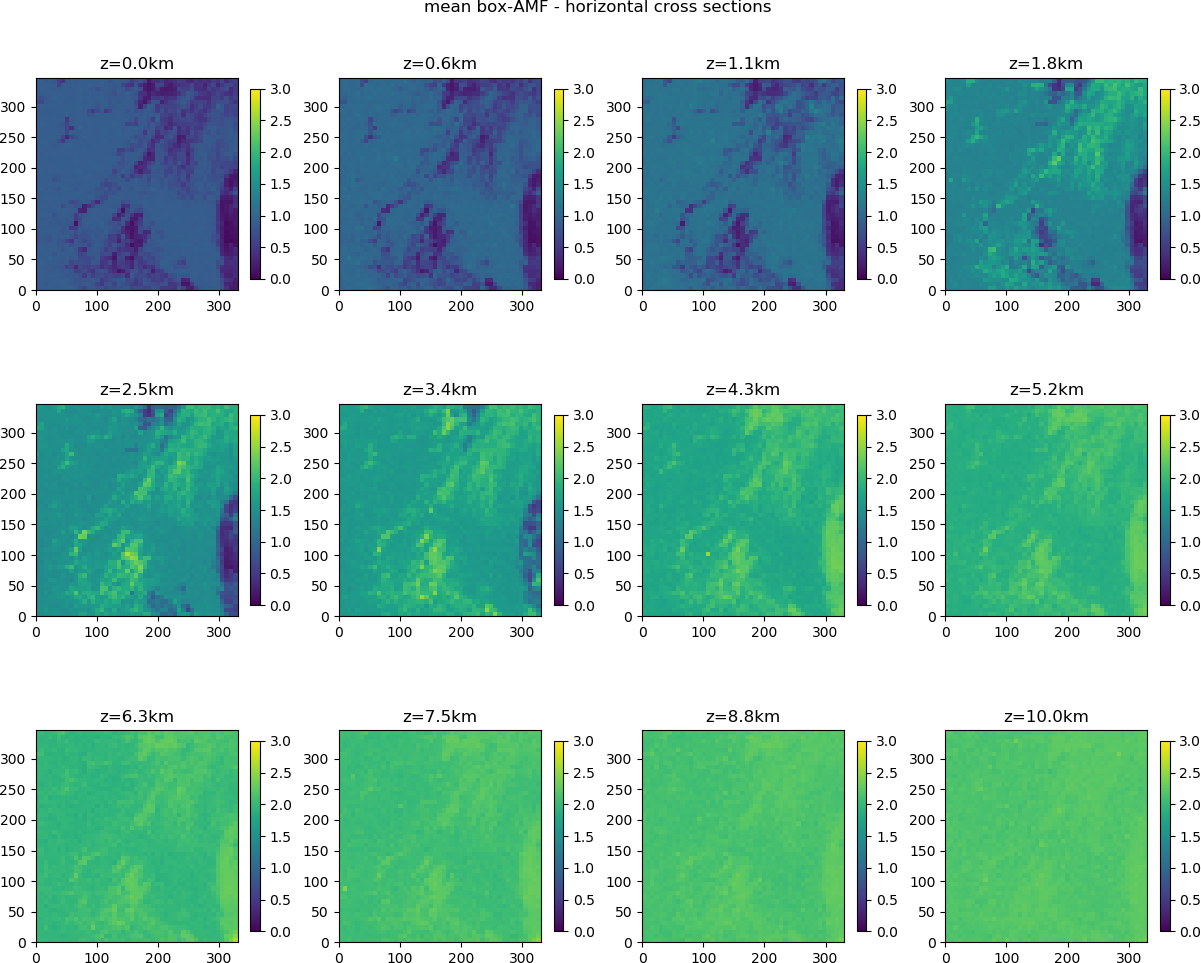

Layer-AMFs for horizontal cross sections at various altitudes.

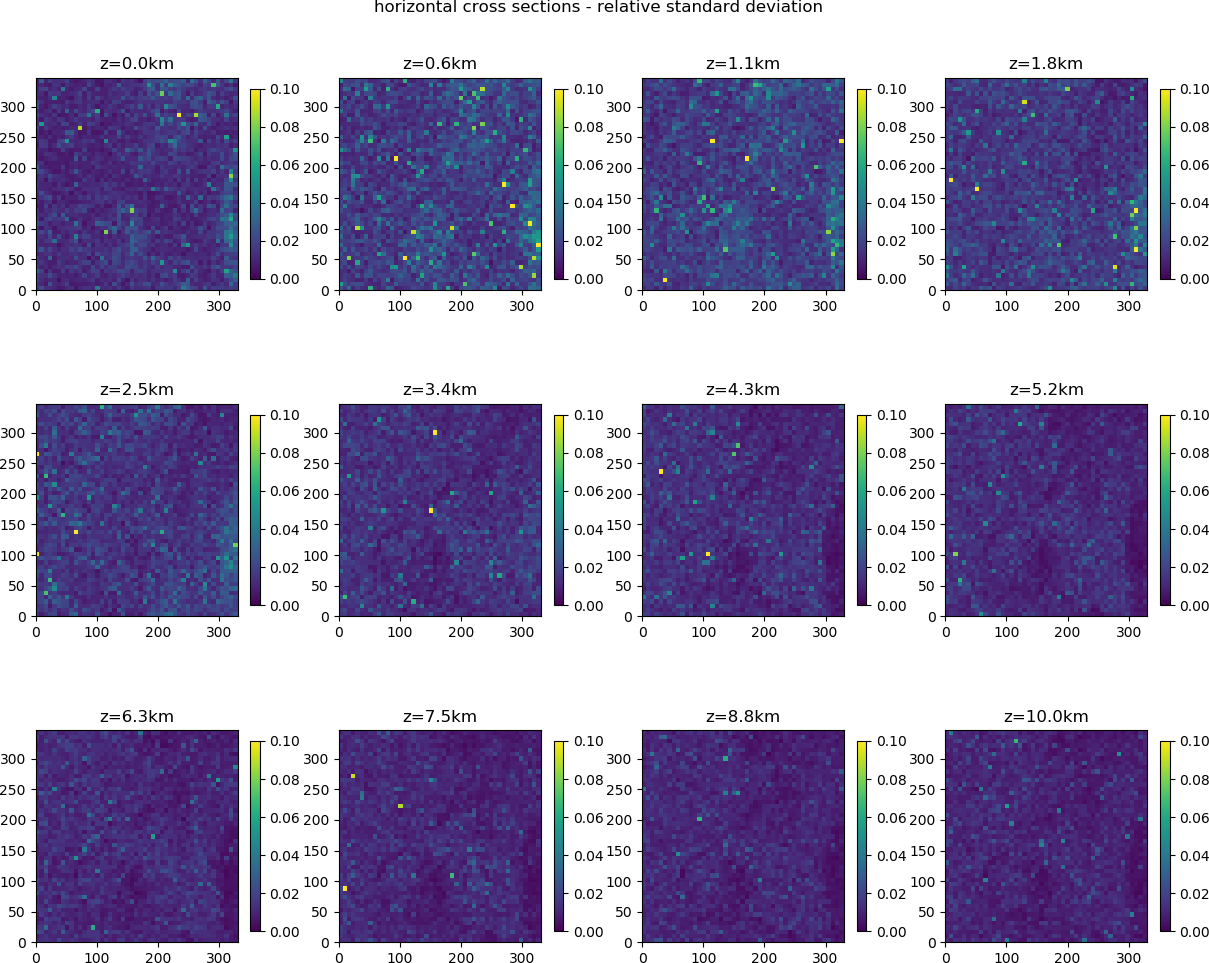

Standard deviation of layer-AMFs for horizontal cross sections at various altitudes. There are larger values of several per cent. Those occur randomly. The mean standard deviation of all boxes is 1.9%.

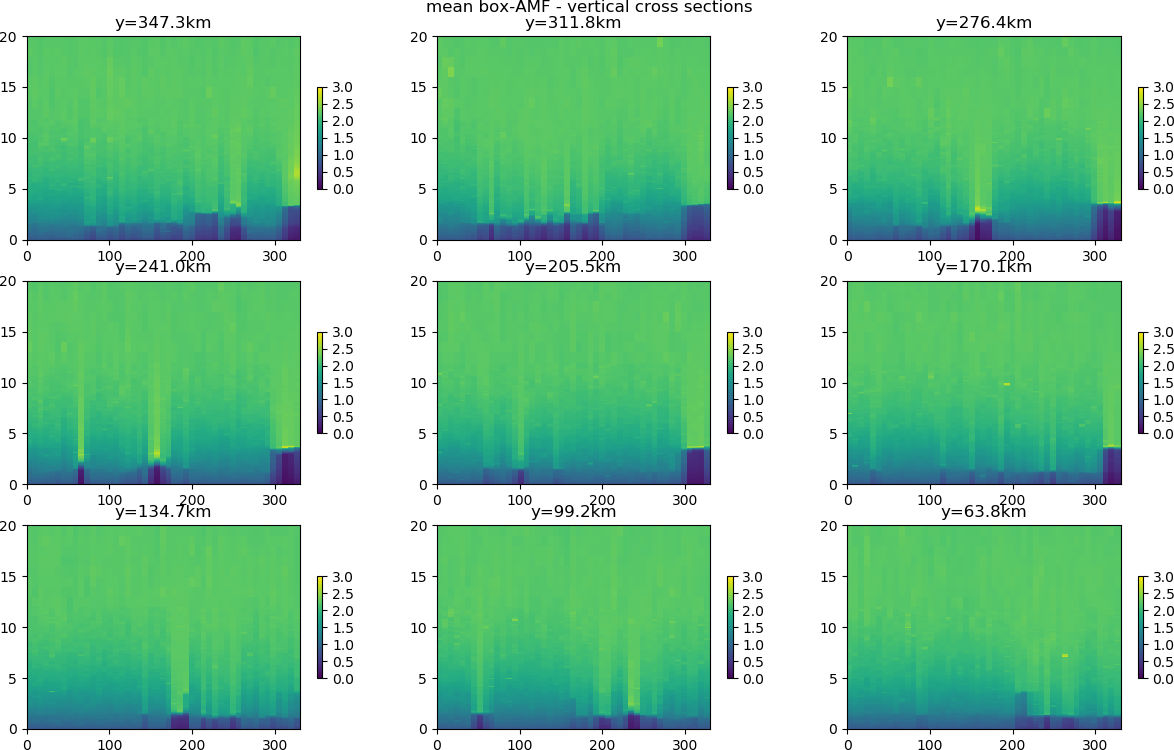

Layer-AMFs for vertical cross sections at various y-positions.

Standard deviation of layer-AMFs for vertical cross sections at various y-positions.

MYSTIC results (spectral reflectance and box-AMFs at 450nm)

MYSTIC results (reflectance at 450nm, 296x276 pixels.)

Water cloud input file.

Ice cloud input file.
